MAINTENANCE
125

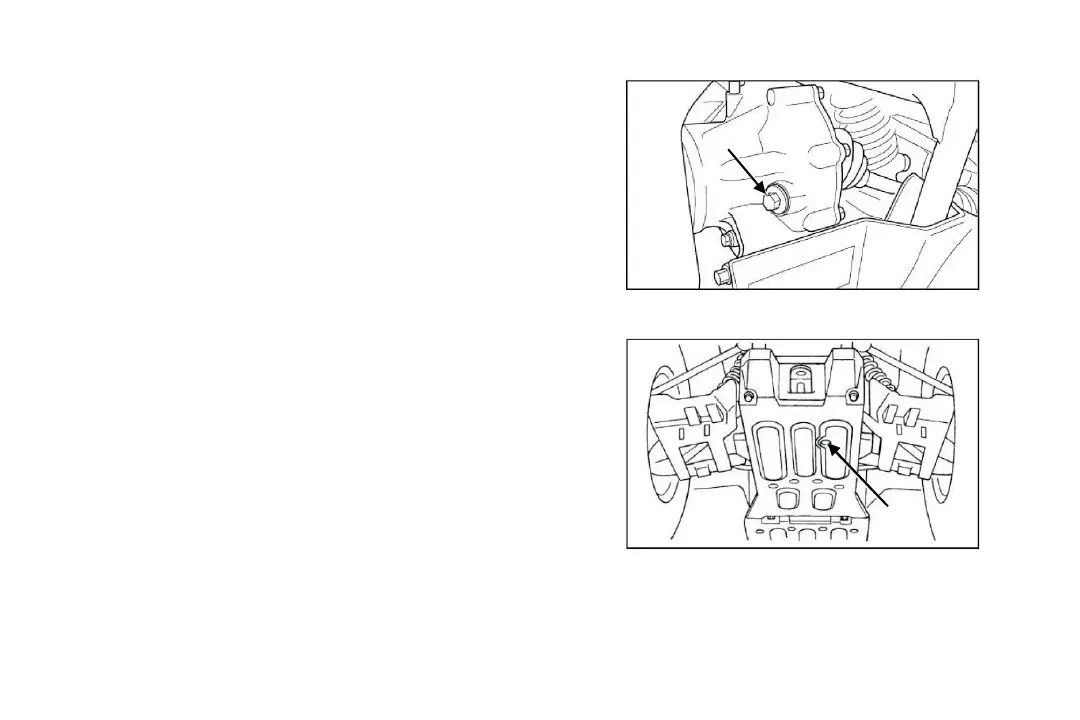

Rear gear case oil check
1. Place the vehicle on a level surface.
2. Remove the oil filler bolt ③ and check the oil
level. The level should be up to the brim of the
hole. If the level is low, add sufficient oil to raise
it to the specified level.
3. Install the oil filler bolt and tighten it to 17 ft-lb.
(23 Nm).
Rear gear case oil change
1. Place the vehicle on a level surface.
2. Place an oil pan under the gear case to collect
the used oil.
3. Remove the oil drain bolt ④ at the bottom of the
gear case and drain the oil.
4. Install the oil drain bolt and tighten it to 17 ft-lb.
(23 Nm).
5. Add sufficient oil to raise the level up to the brim
of the hole.
6. Install the oil filler bolt and tighten it to 17 ft-lb.
(23 Nm).
NOTE:
Approximate rear gear case oil capacity: 7.0 oz. (250ml)
