CFMoto Uforce 500 - Electrical; Fuses

MAINTENANCE
148
Electrical
Fuses

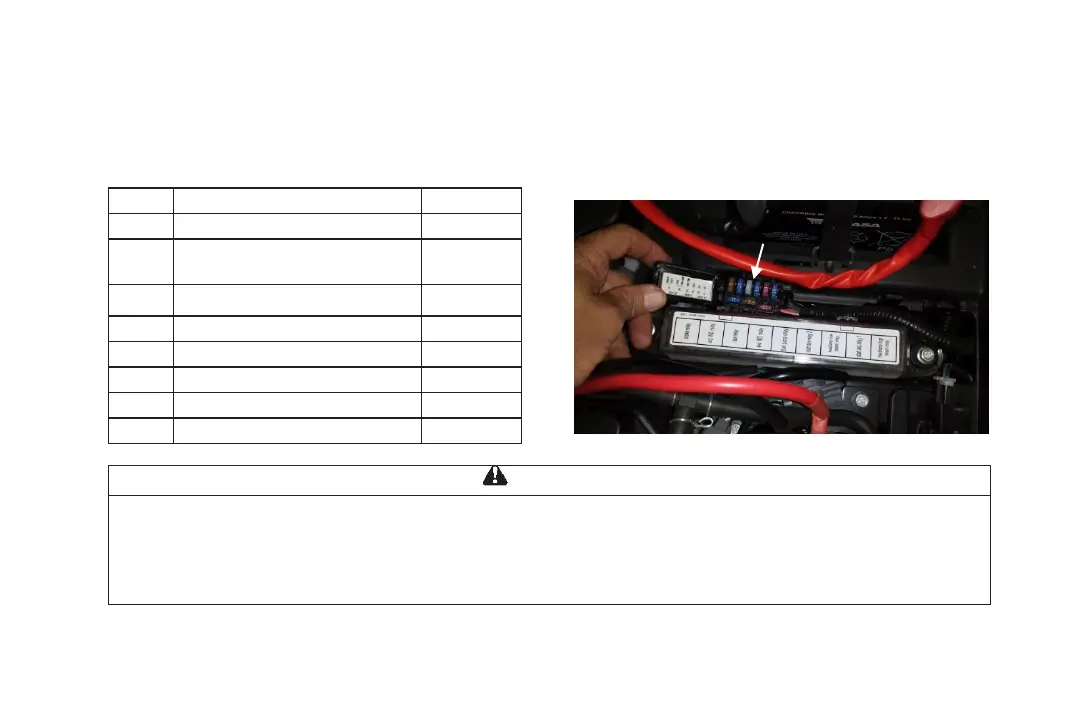

The fuse box ① is located under the front access cover. If a fuse is blown, turn off the main switch
and install a new fuse of the specified amperage. Turn on the main switch. If the fuse immediately
blows again, contact your dealer.
Ref
FUSE
RATING
F1
DC outlet/Backup
15A
F2
Auxiliary starter relay/turn/horn
10A
F3
Fuel pump
15A
F4
Headlight
25A
F5
Fan motor
15A
F6
ECU
5A
--
Main Fuse (Near battery)
40A
--
EPS Fuse (Near EPS module)
40A
CAUTION
To prevent an accidental short-circuit, turn off the main switch before checking or replacing fuses.
Always use a fuse with the correct specified rating. Never use conductive material in place of the
proper fuse. Using an improper fuse can cause damage to the electrical system and may lead to a
fire.
①
