MAINTENANCE
144
Suspension
Some front suspension components of the vehicle do not require maintenance or lubrication. Ensure
these components are cleaned regularly, and are not loose or damaged before operating the vehicle.
Pivot Lubrication
Lubricate the upper and lower pivots of the front and rear
suspension:

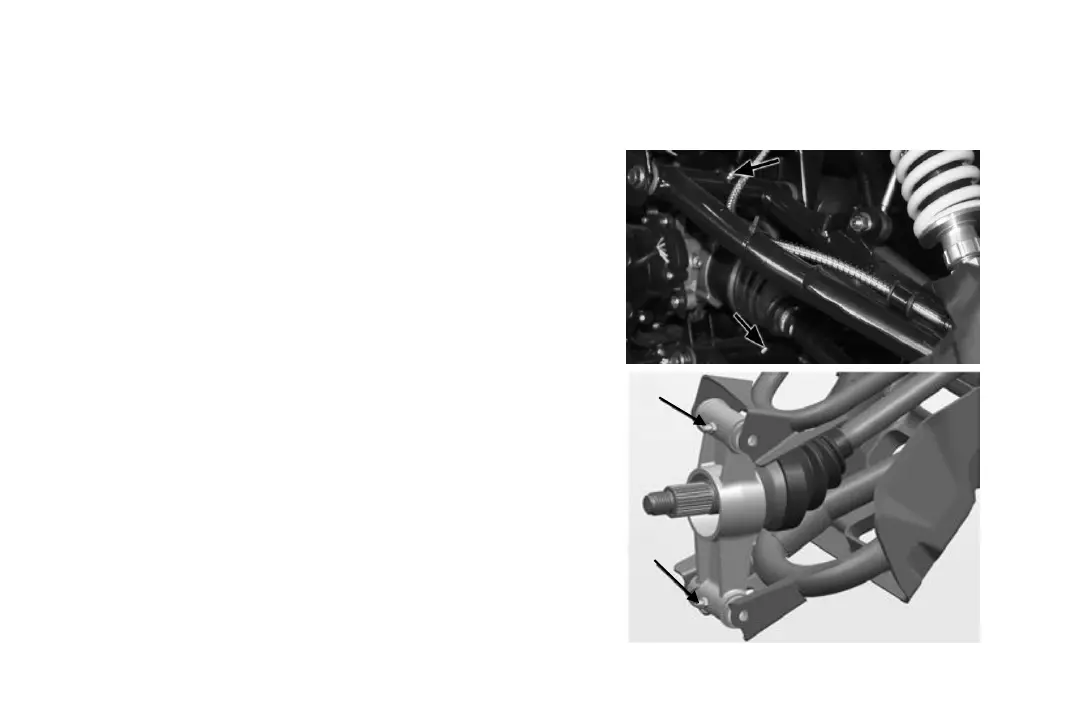

1. Add grease into the upper and lower pivot grease
nipples ① located at the frame with a grease gun
until grease lightly flows from the bushing.
Rear hub carrier lubrication
Lubricate the upper and lower pivots of the rear hub
carrier:
1. Remove the rear wheels.
2. Add grease into the hub carrier upper and lower
pivot grease nipples ② with a grease gun until
grease lightly flows from the bushing.
3. Reinstall the rear wheels. Torque the fasteners
to specification.
NOTE:
Recommended lubricant: All Season Grease
