CH L1 - Dual Monaural Configuration; True Monaural Configuration

3.4.1 Dual Monaural configuration
In this configuration, a single L1 is used to hold two channels (Left and Right, Center and Sub or Left and Right surround). Two
boards are fitted inside a single chassis, each one independently processing a single channel.

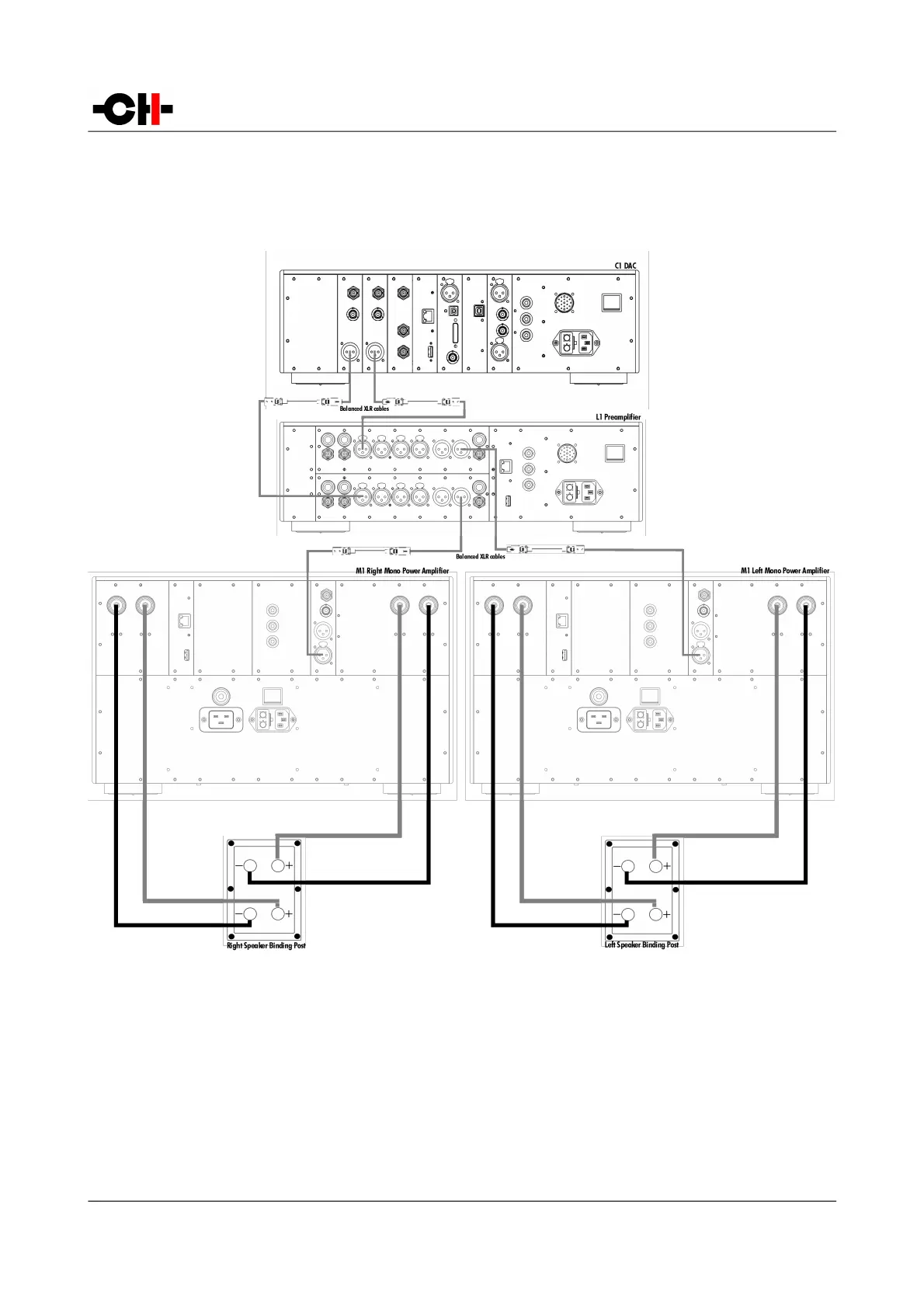

Dual Monaural mode
3.4.2 True Monaural Configuration
In this configuration, two L1s are used to hold a single channel each (Left resp. Right, Center resp. Sub or Left resp. Right
surround). One board is fitted inside each chassis, each L1 processing a single audio channel.
Rev 1.0 L1 User Manual 21
