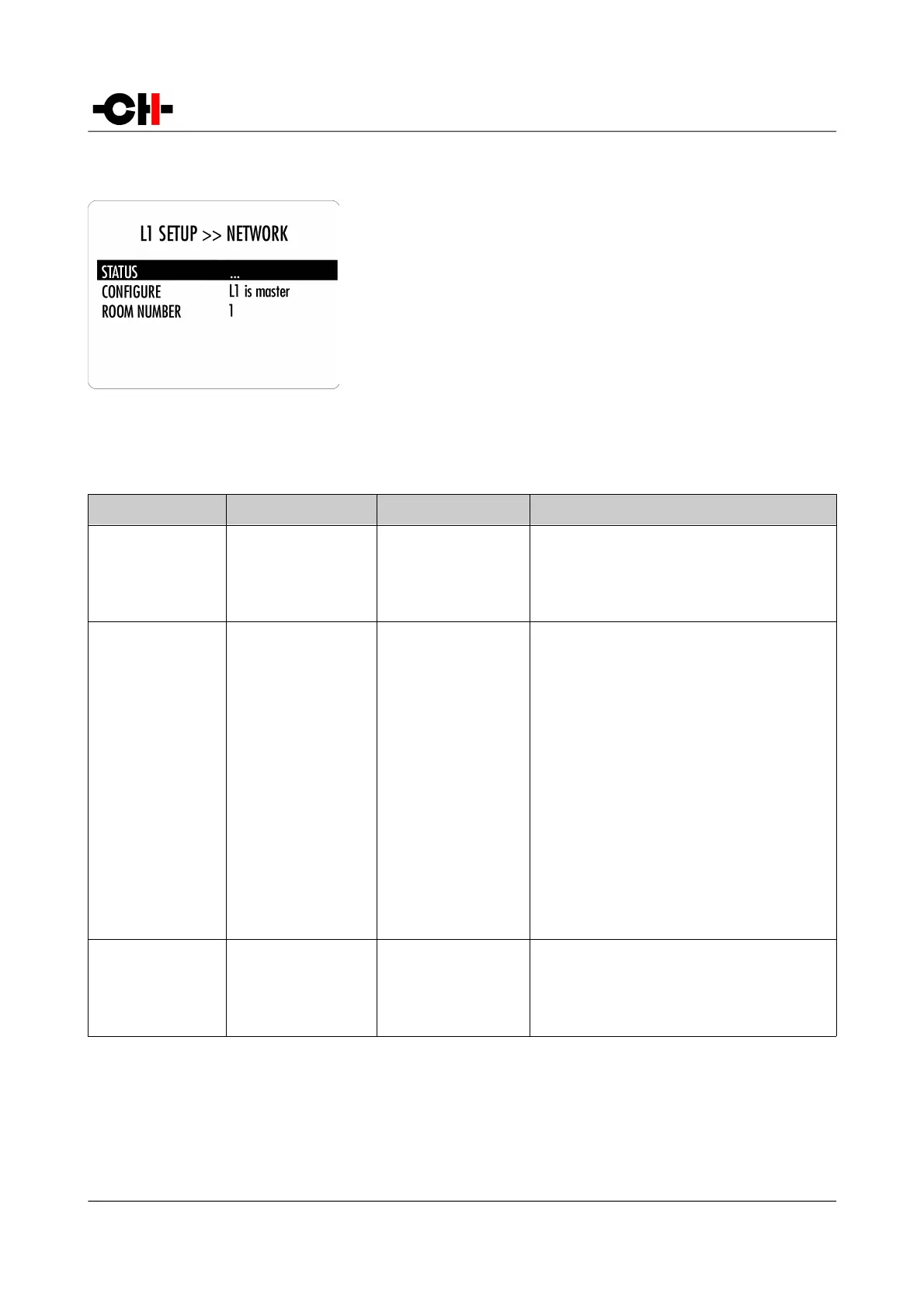

CH L1 - Network

4.3.1.6 NETWORK
The L1 SETUP >> NETWORK menu display the information and allows the
customization of the network related Parameters of the unit. Accessible
Parameters are:
- STATUS:
- CONFIGURE:
- ROOM NUMBER:
Listing of all CH products detected (product type, IP and
MAC addresses)
Defines if the L1 should interact with the network as
master, slave or not (offline)
For multiroom applications, define in which room the L1 is
The following table details the Parameters of the NETWORK menu:
PARAMETER PARAMETER VALUES REQUIRED OPTIONS REMARKS
STATUS IP address
Product type
MAC address
Connection to a router
via its RJ-45 Ethernet
port (on the Control
board).
List of CH Precision devices and Android remote
controls detected by the L1 (product type, IP and
MAC addresses)
Parameters are Read Only
CONFIGURE This L1 is master
This L1 is slave
This L1 is offline
Connection to a router
via its RJ-45 Ethernet
port (on the Control
board).
When physically connected to a network, the L1 can
ignore this network (offline) or connect to it as
being the master (it will broadcast its state for
slaves to synchronize) or as a slave (it will ignore IR
remote control commands and synchronize to the
master instead).
There must be no more and no less than one master
in a CH network.
This networking facility enables information sharing
among CH products (such as input selection and
volume control for true monaural L1 Left + L1 Right
configurations).
ROOM NUMBER 1
…
6
Connection to a router
via its RJ-45 Ethernet
port (on the Control
board).
Define the room in which the L1 is for multiroom
applications
Details of NETWORK menu Parameters
