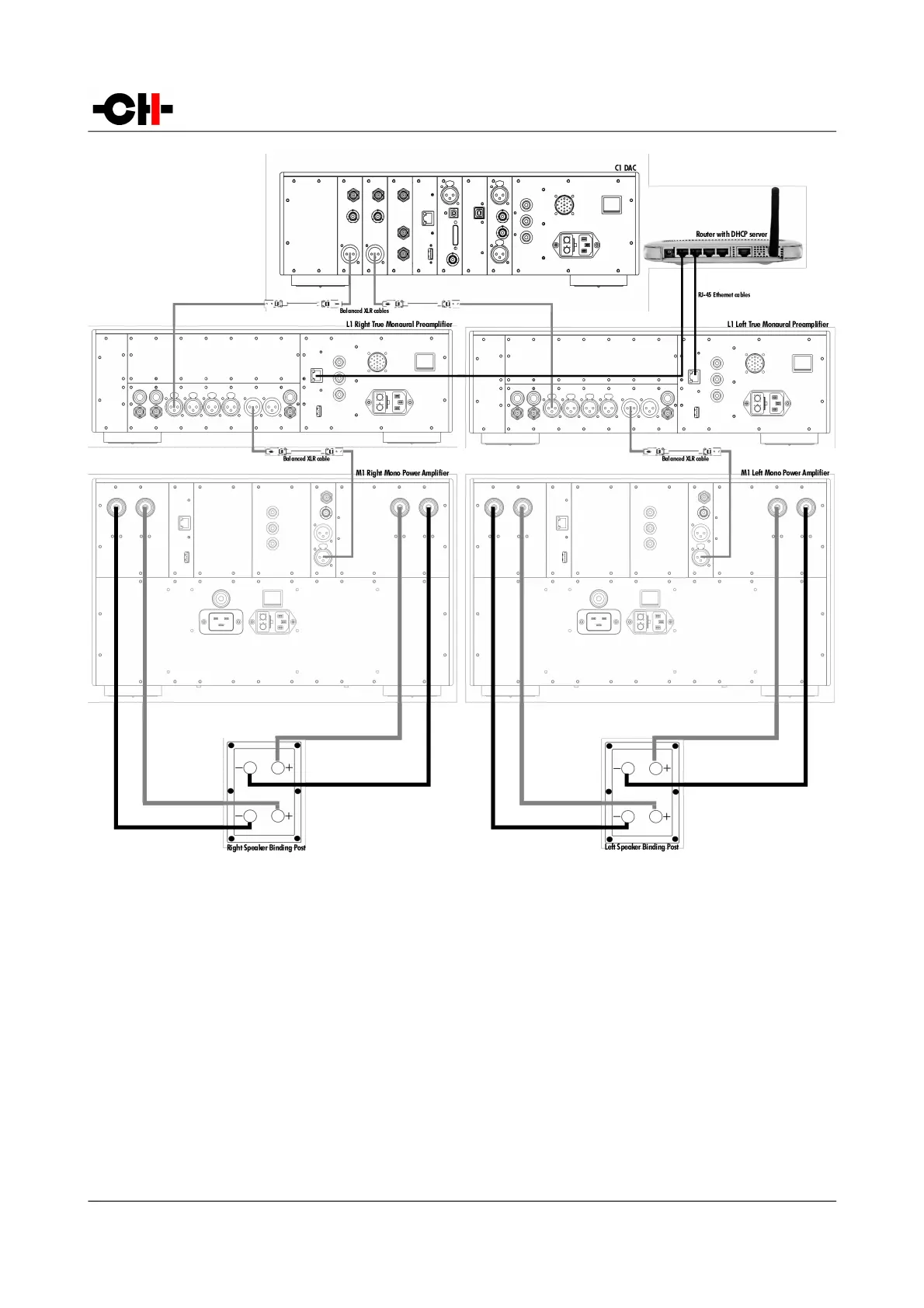

True Monaural configuration
3.4.3 True Monaural Extended Configuration
The configuration is identical to the True Monaural configuration, with the addition of a second board in each chassis. The two
boards in a chassis work together, as if it was only one board with twice as many inputs (and outputs). This configuration will be
used when more inputs are required than the amount a single board can provide.
22 L1 User Manual Rev 1.0
