4.3 Configuration
Configuration of your L1 preamplifier is accomplished by setting up parameters in the Menu mode (see previous section on how to
access the Menu mode and how to navigate through menu items). The following diagram shows the complete menu structure (final
items not shown). Grayed menu items are items which depend on installed optional slot-in boards.

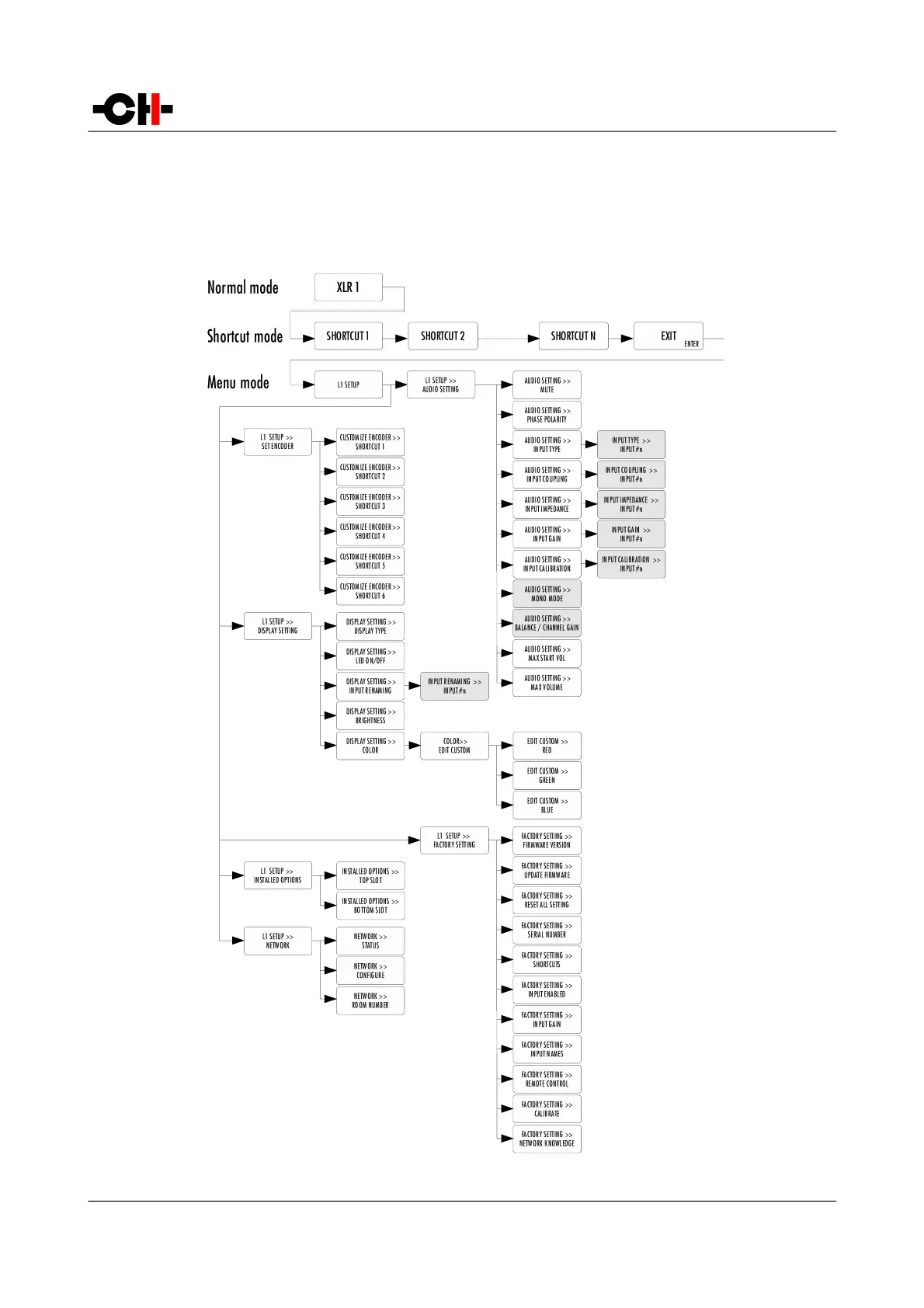

L1 preamplifier menu structure
32 L1 User Manual Rev 1.0
