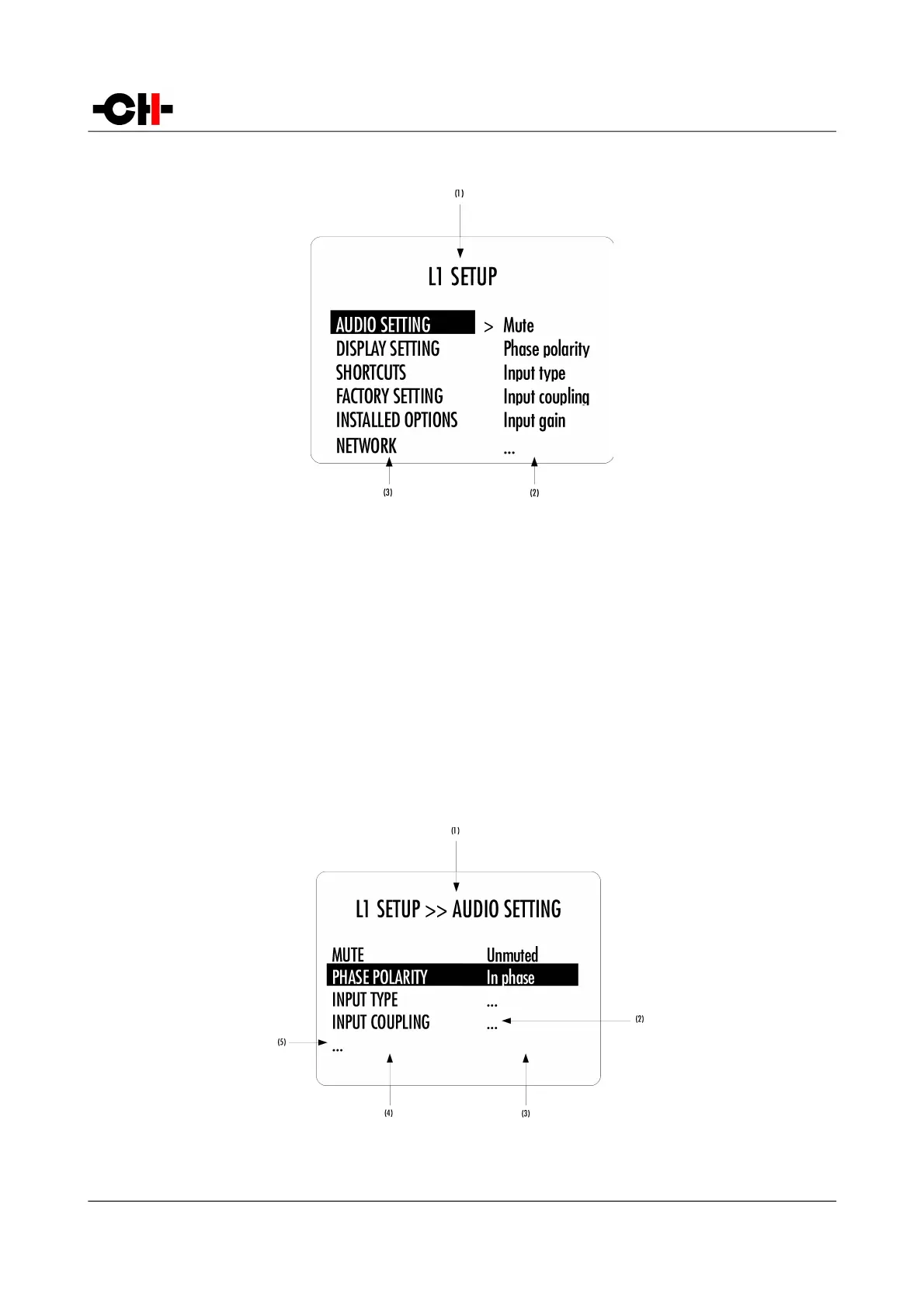

Following illustration shows the elements of a L1 SETUP Menu page, the entry point to the L1 menu structure.
L1 SETUP screen items
(1) Menu title. When entering a menu item, the title also shows the parent menu. If the AUDIO SETTING menu is entered, the title line would display
L1 SETUP >> AUDIO SETTING.
(2) Shows the available parameters when entering the currently highlighted menu item. In this example, AUDIO SETTING is highlighted and the
second column shows the parameters available in the AUDIO SETTING menu.
(3) The list of items in the current menu. Navigate from one item to the other using Central Rotate Left/Right [<<C]/[C>>]. To enter the highlighted
menu item, use External Rotate Right [E>>] (or a Normal Push [NP]). To go to the previous menu level use External Rotate Left [<<E]. In this
example, External Rotate Left [<<E] exits the Menu mode and sets the unit back to Normal mode.
(4) Once a menu item is selected by External Rotate Right [E>>], parameters for the corresponding menu item can be
navigated and accessed. As an example, the following drawing shows the display elements of the L1 SETUP >> AUDIO
SETTING sub-menu.
L1 SETUP >> AUDIO SETTING menu items
30 L1 User Manual Rev 1.0
