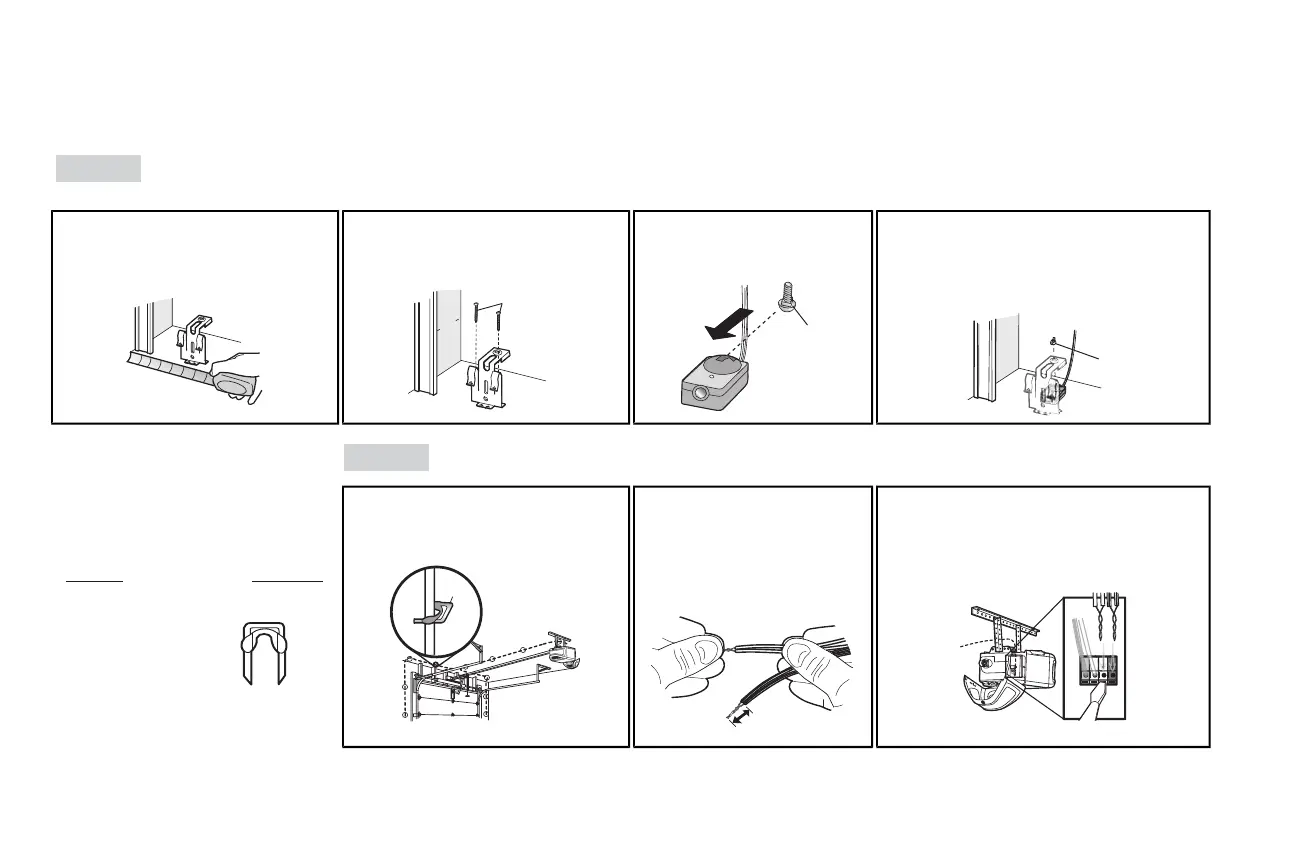

Install the Protector System
®
1 Install the Safety Reversing Sensors
OPTION C
FLOOR INSTALLATION
Use an extension bracket(not provided) or wood black to raise the sensor bracketif needed.
1.1C Carefully measure the position of both
sensor brackets so they will be the same
distance from the wall and unobstructed.
1.2C
Attach the sensor brackets to the floor
using concrete anchors (not
provided).
nsi
d
e
G
arage
Wa
l
(not provided)
1.3C
Slide the carriage bolt (H17)
into the sloton each sensor.
1.4C
Insert the boltthrough the hole in the sensor
bracketand attach with the wing nut (H18). The
lenses on both sensorsshould pointtoward
each other. Make sure the lensis not obstructed
by the sensor bracket.
2 Wire the Safety Reversing
Sensors
OPTION A
INSTALLATION WITHOUT PRE-WIRING
PRE-WIRED INSTALLATIONS: If your garage
already has wires installed for the safety
reversing sensors, proceed to page 26.
2.1A Run the wire from both sensorsto the
garage door opener.Attach the wire to
the wall and ceiling with the staples.
2.2A Strip 7/16 inch (11 mm) of
insulation from each setof
wires. Separate the wires. Twist
the white wires together. Twist
the white/blackwires together.
2.3A Insert the white wires into the white terminal on
the garage door opener.Insert the white/black
wires into the greyterminal on the garage door
opener. To insert or remove the wires from the
terminal, push in the tab with a screwdriver tip.
25
