(13)Tape placing area : Used for placing tape.

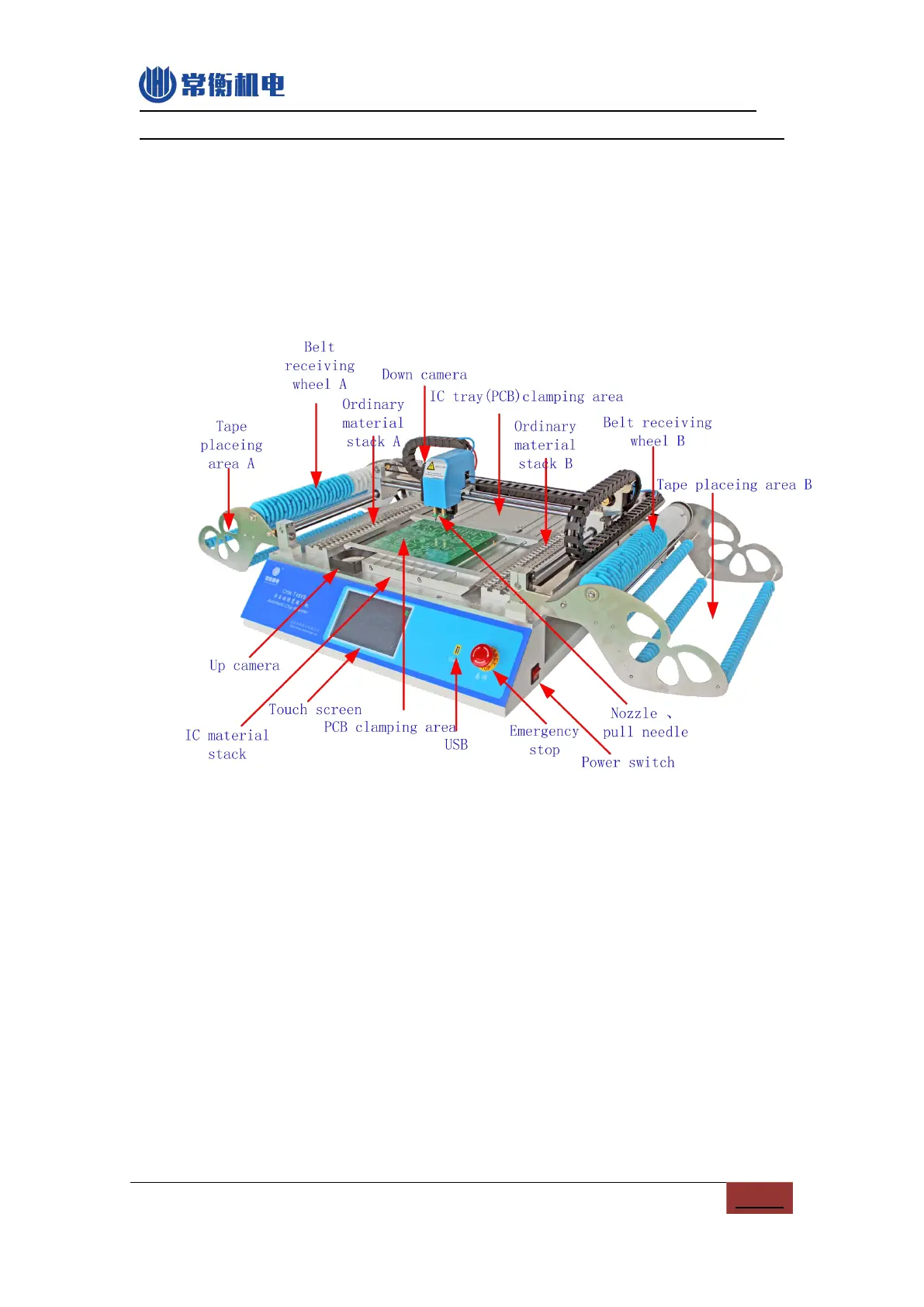

3.3.CHM-T48VB
Figure.3- 3
(1) Up camera: Used for calibrating the components position, angle, so as to improve
placement accuracy.
(2) IC material stack: used for place the big IC.
(3) LCD touch screen: Used for operating the machine.
(4) PCB clamping area: fixing the PCB, let PCB close to left, top spring should be
compacted.
(5) USB port: Used for connect the USB storage device.
(6) Emergency stop switch: Emergency stop after press down, machine normal work
when clockwise rotation and bounce.
(7) Power button: Used for opening or off the machine.
(8) Nozzle & Pull needle: Nozzle used for absorbing materials and mount on PCB,
pull needle used for pull the material go ahead.
