(1) Stack list: Show all of material stack in work file.
(2) Edit: Edit selected material stack, note, all of relevant components will be
changed.
(3) Delete: Delete selected material stack, note, all of relevant components will be
deleted.
(4) Resort ID: The material stack ID starting from 1 in ascending order;
(5) Reverse angle: Invert selected material stack, i.e. rotate 180 degree, note, all of
relevant components will be changed.
(6) IC Angle compensate: Compensate IC, rotate 90 degree. Some component need
angle compensate, e.g. SOPB, QFN, etc.
(7) Save: Save converted work file.
9.2.2.Components list

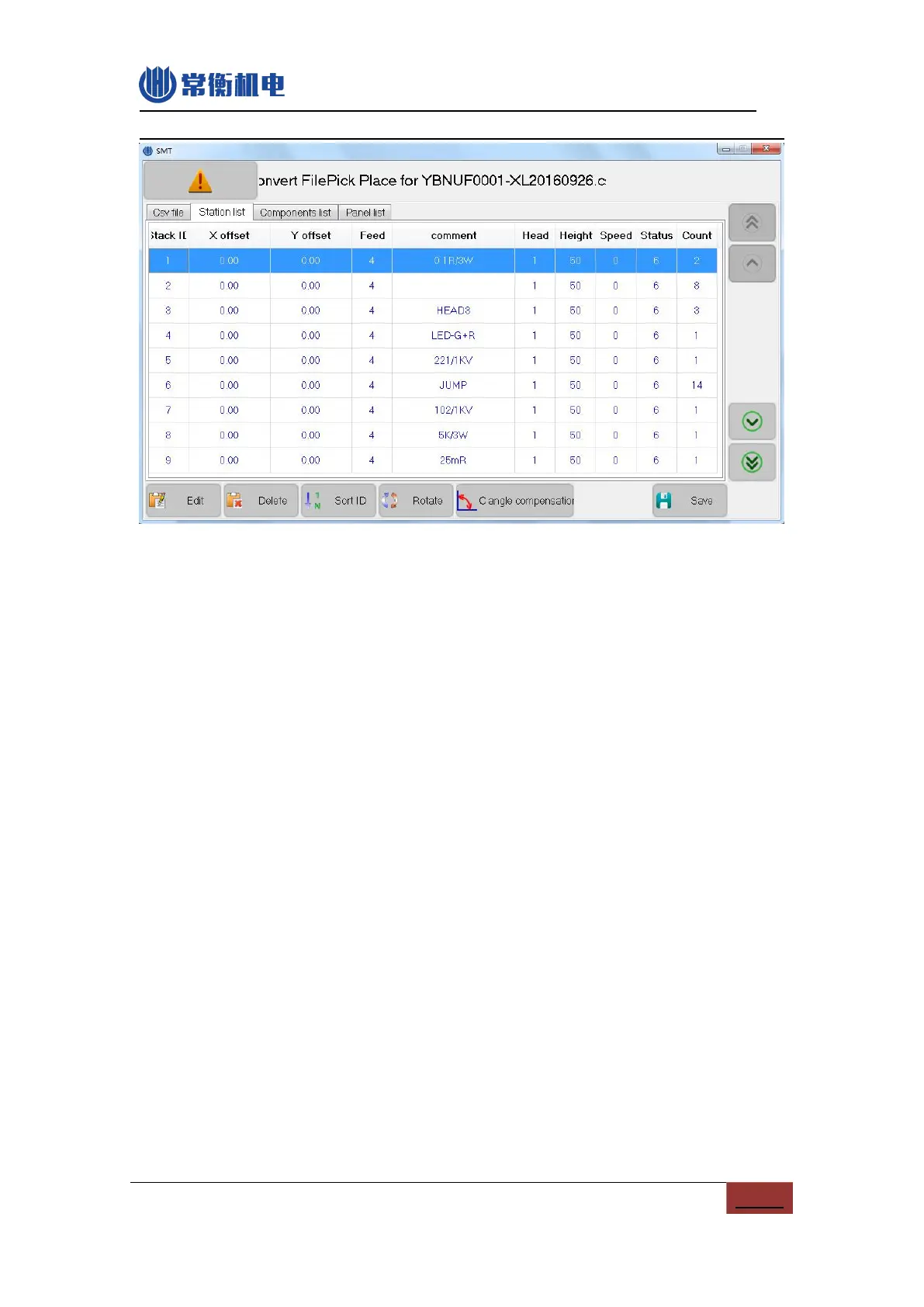

Window as show below.
