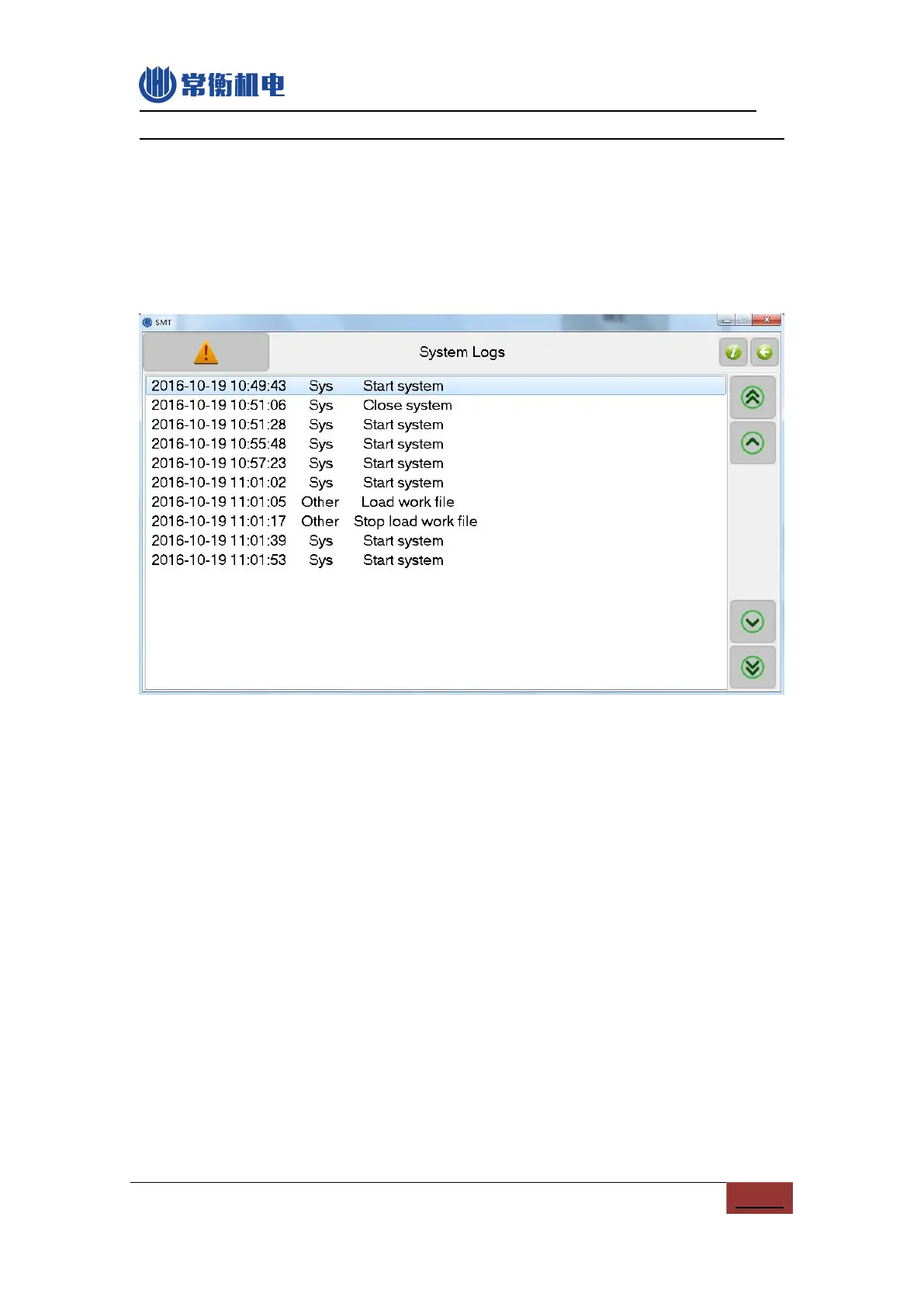

11.System Log
System log used to view all kinds of records generated by the system, Window as
show below.
Figure.11- 1
12.Quick Start
(1) Create work file: By two ways
a) Export CSV file by PCB software, and then convert it to work file, refer to section
“File”.
b) Build work file manually, refer to section “Run”-“Edit Work File”.
(2) Edit work file: Modify work file according to your needs, refer to section
“Run”-“Edit Work File”.
(3) Place material: Place material in corresponding material stack according to work
file, note some points below when placing.
a) See figure below, material disk is fixed by three points, and the tape goes across
under bearing.
