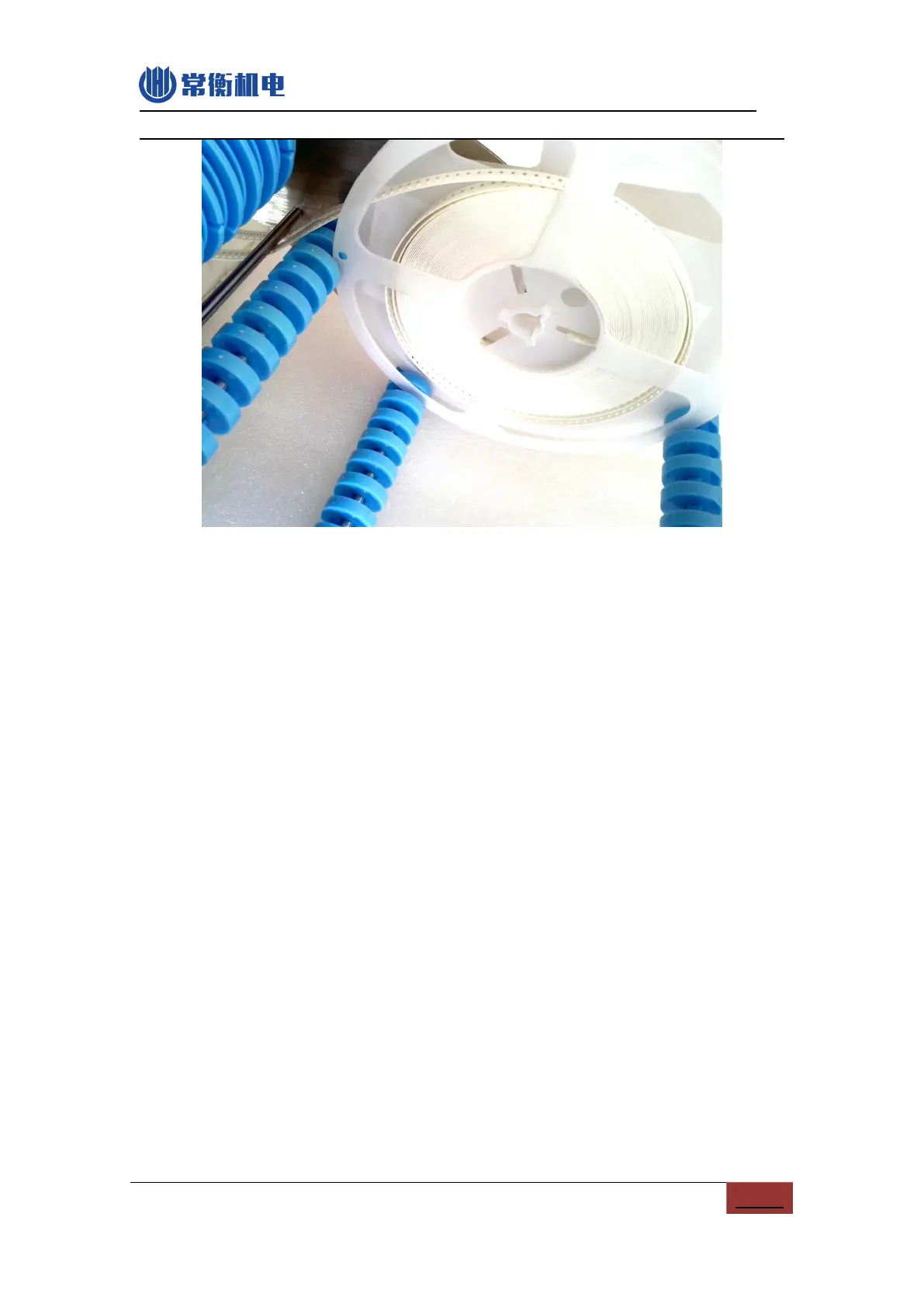

Figure.12- 1
b) See figure below, the tape goes across material stack and lead to underside of
machine, note that align the round hole of tape to the edge of batten when
placing, refer to section “Run”.
