(4) Start IC num.: ICs are numbered(start from 0) from left to right and down to top, if
the start IC number is set, IC which number smaller than start IC number will be
skipped.

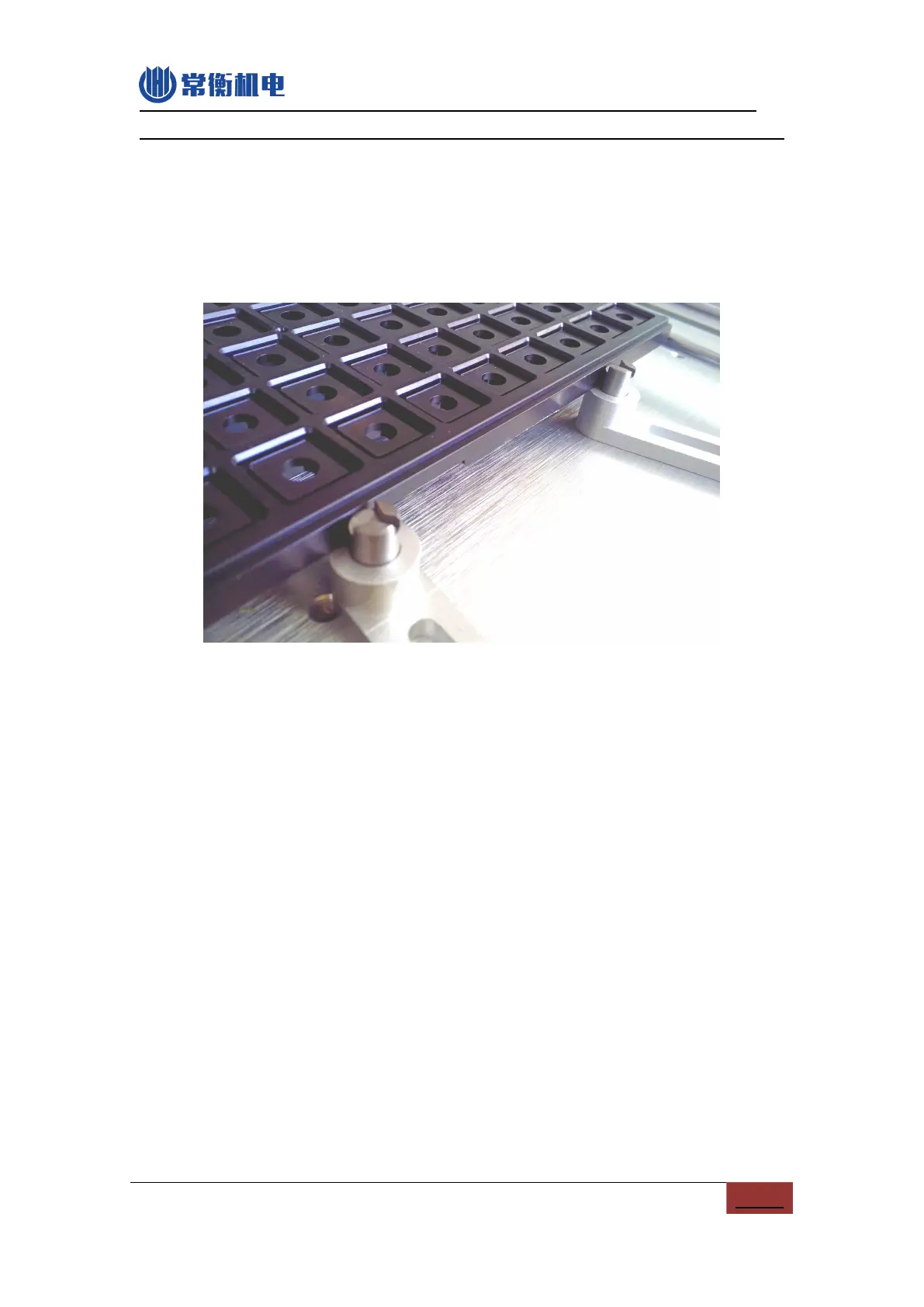

Note, IC tray can not be put on the top of fix pillar, or pull needle may run into IC tray
and be damaged due to height exceeding, the figure below shows the right.
Figure.6
- 15
6.1.5.PCB Calibration
In order to eliminate PCB position and angle of deviation, it is necessary to calibrate
PCB before mount, screen as show below.
