Figure.6- 13

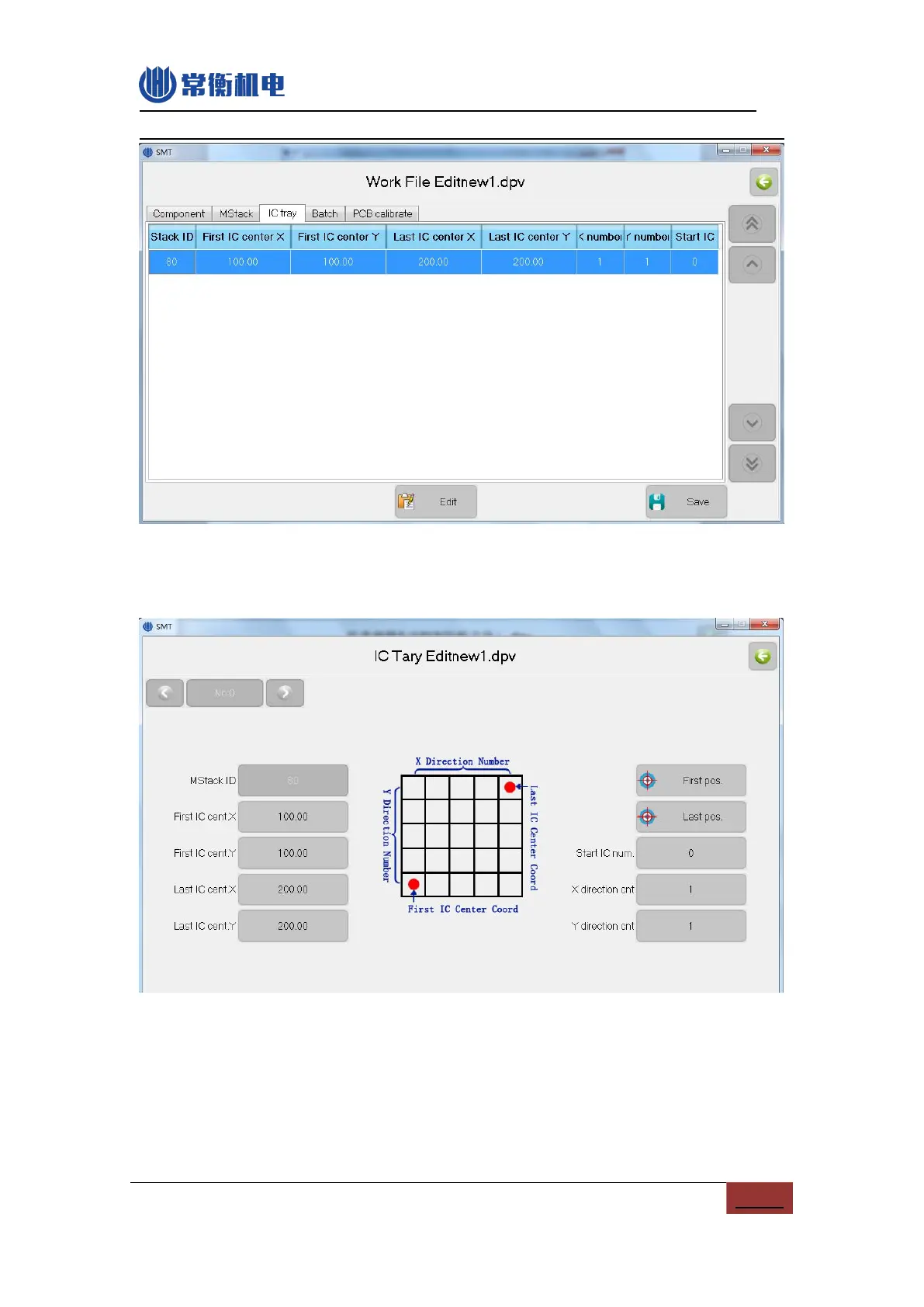

Material stack will be added to IC tray list automatically if material stack number is
from 80 to 99 in material stack list, click “Edit” to pop up window as show below.
Figure.6- 14
(1) First IC cent. X\Y: IC center coordinate in the left bottom of IC array, it can input
manually or determine by location;
(2) Last IC cent. X\Y: IC center coordinate in the top right of IC array, it can input
manually or determine by location;
(3) X\Y direction cnt: i.e. IC count in X\Y direction;
