7.Test

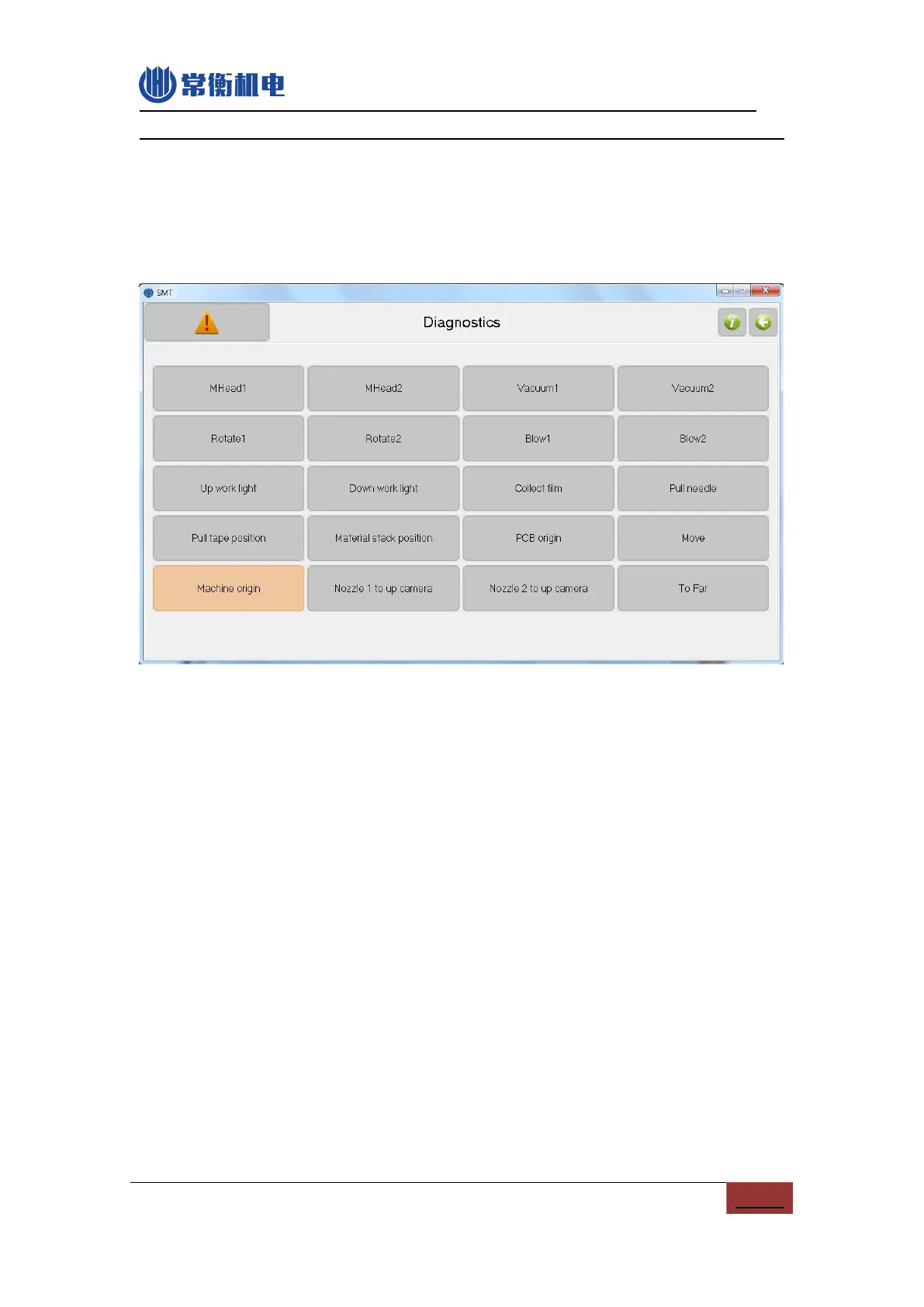

Used for testing modules of SMT machine respectively, window as show below.
Figure.7- 1
(1) Mhead 1\2: Button down then nozzle press down, button up then nozzle up;
(2) Vacuum 1\2: Click button to switch nozzle in suction;
(3) Rotate 1\2: Button down then nozzle anticlockwise rotate 180º, button up then
return back;
(4) Blow 1\2: Click button to switch nozzle in blow;
(5) Up work light: Click to open or close up camera work light;
(6) Down work light: Click to open or close down camera work light;
(7) Collect film: Click to collect film one time;
(8) Pull needle: Button down then pull needle down, button up then pull needle up;
(9) Pull tape position: Move pull needle to specified position of tape;
(10)Material stack position: Move nozzle to specified position of material stack;
(11)PCB origin: Move nozzle to PCB origin;
(12)Move: Move mount head to certain position;
(13)Machine origin: Click then mount head return to origin;
(14)Nozzle 1\2 to up camera: Move nozzle 1\2 to position of up camera.
(15)To Far: Move nozzle part to right top.
