6.1.3.Batch
Batch is that splicing a number of same PCBs to mount together, but just need one
component list, it can be multiple same PCBs which have not been cut apart after
manufacture, also can be some same PCBs spliced by user.
Note, PCBs’ edge must parallel each other(same rotation angle)when place PCBs to
the PCB clamp area.
Batch has two location types, the one is by coordinate, i.e. locating each PCBs’ origin
which set by user, the other one is by array, i.e. PCBs’ coordinate is calculated by machine

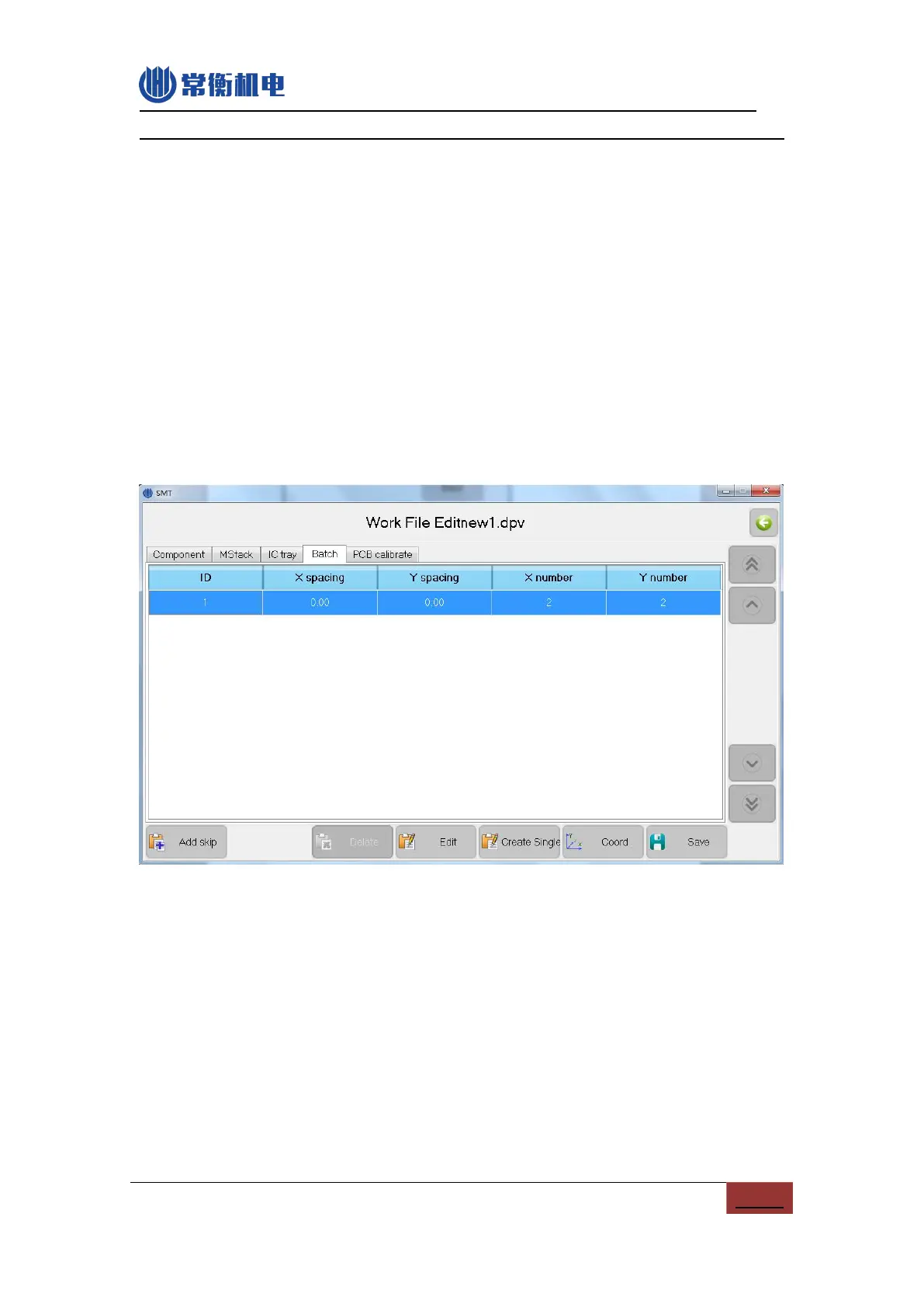

automatically while user set PCB’s line and column count. array mode screen as show
below.
Figure.6- 10
Batch list have one record at least, click “Add skip” button to add a skip record, i.e. do
not mount added PCB when machine running, click “Edit” button popup window as
show below.
