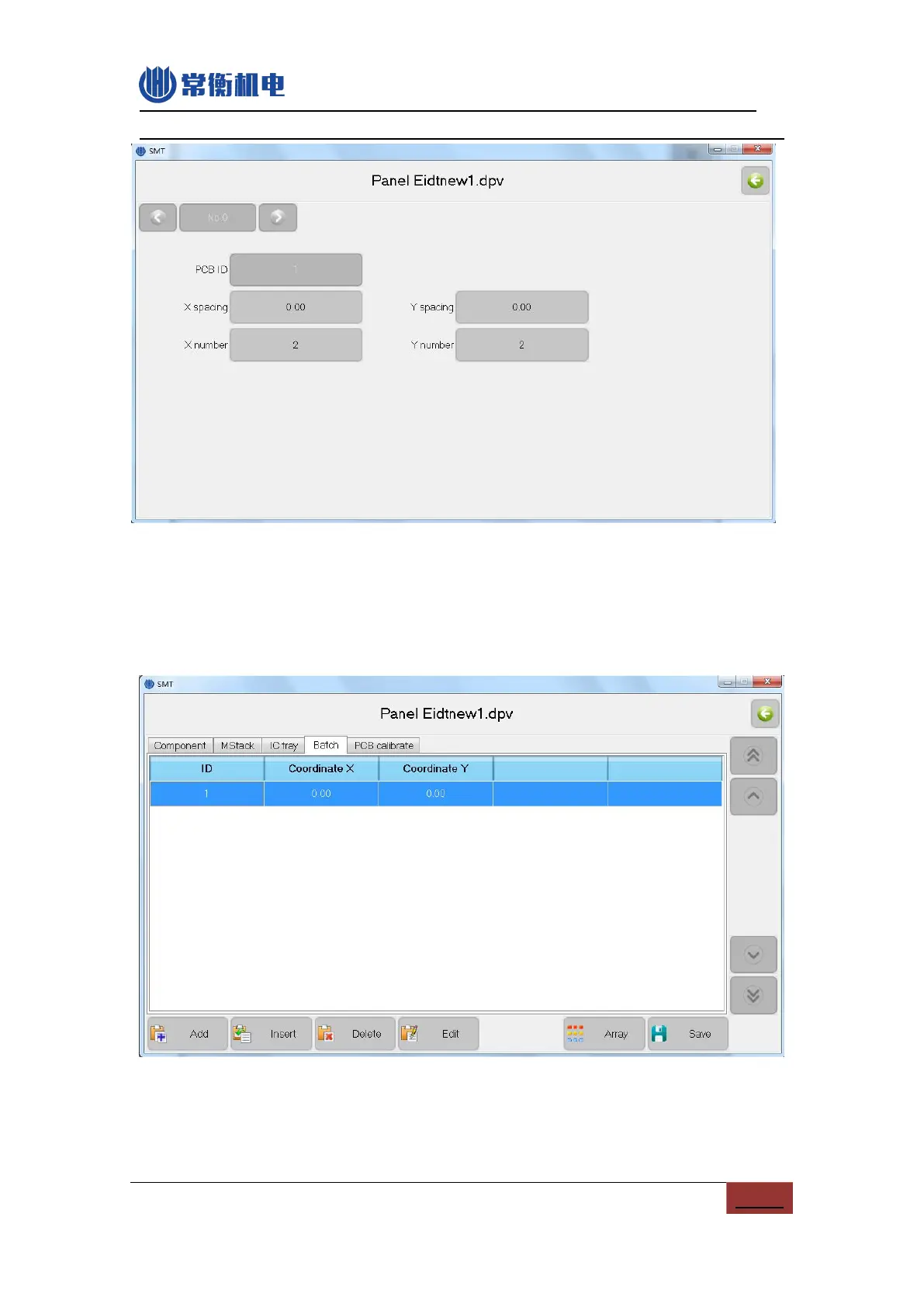

Figure.6- 11
(1) PCB ID: Can’t modify while use array mode.
(2) X\Y spacing: Two neighboring PCBs’ X\Y coordinate spacing of origin.
(3) X\Y number: Number of PCB in X\Y direction.
Coordinate mode screen as show below.
