3.MACHINE PROFILE
3.1.CHM-T36VA

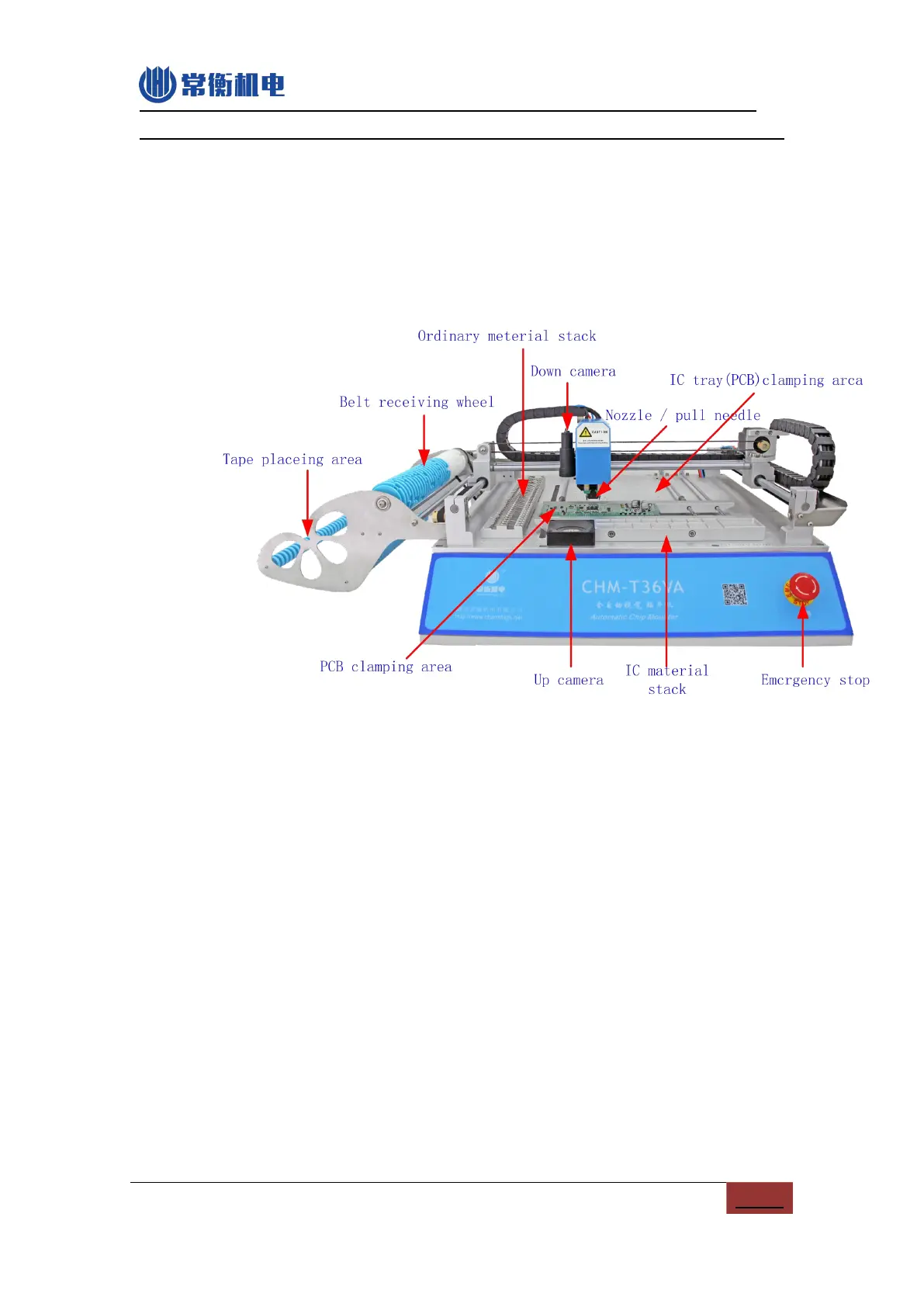

Figure.3- 1
(1) PCB clamping area: fixing the PCB, let PCB close to left, top spring should be
compacted.
(2) Up camera: Used for calibrating the components position, angle, so as to
improve placement accuracy.
(3) IC material stack: used for place the big IC.
(4) Emergency stop switch: Emergency stop after press down, machine normal work
when clockwise rotation and bounce.
(5) IC tray area: Used for fixing IC tray.
(6) Nozzle & Pull needle: Nozzle used for absorbing materials and mount on PCB,
pull needle used for pull the material go ahead.
(7) Down camera: Used for observing and location, and PCB MARK auto adjust.
(8) Ordinary material stack : Place tape packaging materials.
(9) Belt receiving wheel : Used for collecting film.
(10)Tape placing area : Used for placing tape.
