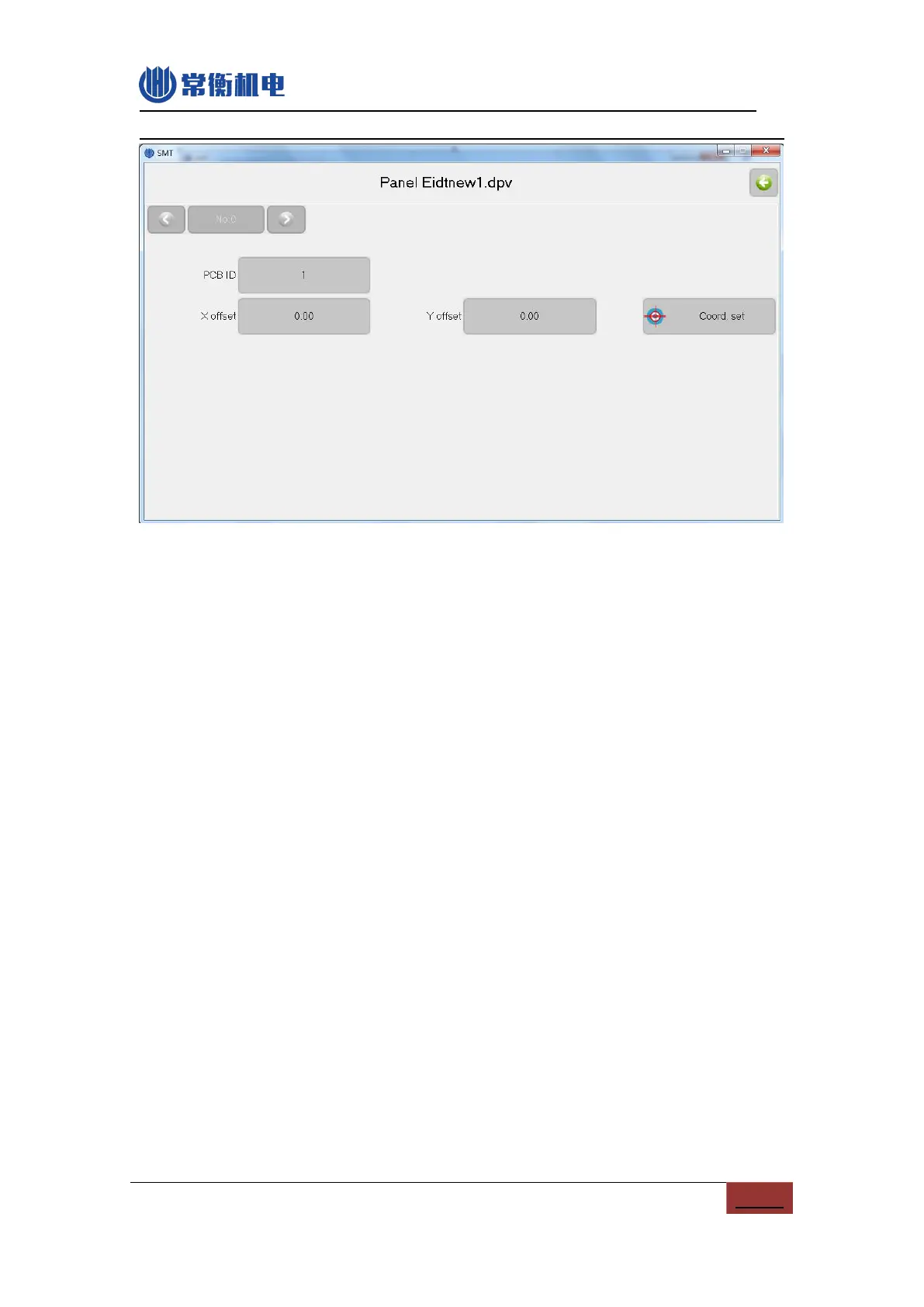

Figure.6- 12
Note, while there have only one record in batch list that indicates batch is disabled,
and the data is invalid. Each record preserve a origin point of PCB while there have
several records, click “Edit” to modify the coordinate or set it via location directly.
6.1.4.
IC Tray edit
IC tray is a special material stack, i.e. the same kind ICs are hold in IC tray clamp
area as a array, machine pickup material to mount in sequence from left to right and down
to up. Window as show below.
