Charmhigh CHM-T48VB User Manual

http://www.charmhigh.com
Charmhigh-V1.0-2016 | Hunan Charmhigh mechanical and electrical co., LTD
6
All Rights Reserved
3.2.CHM-T48VA

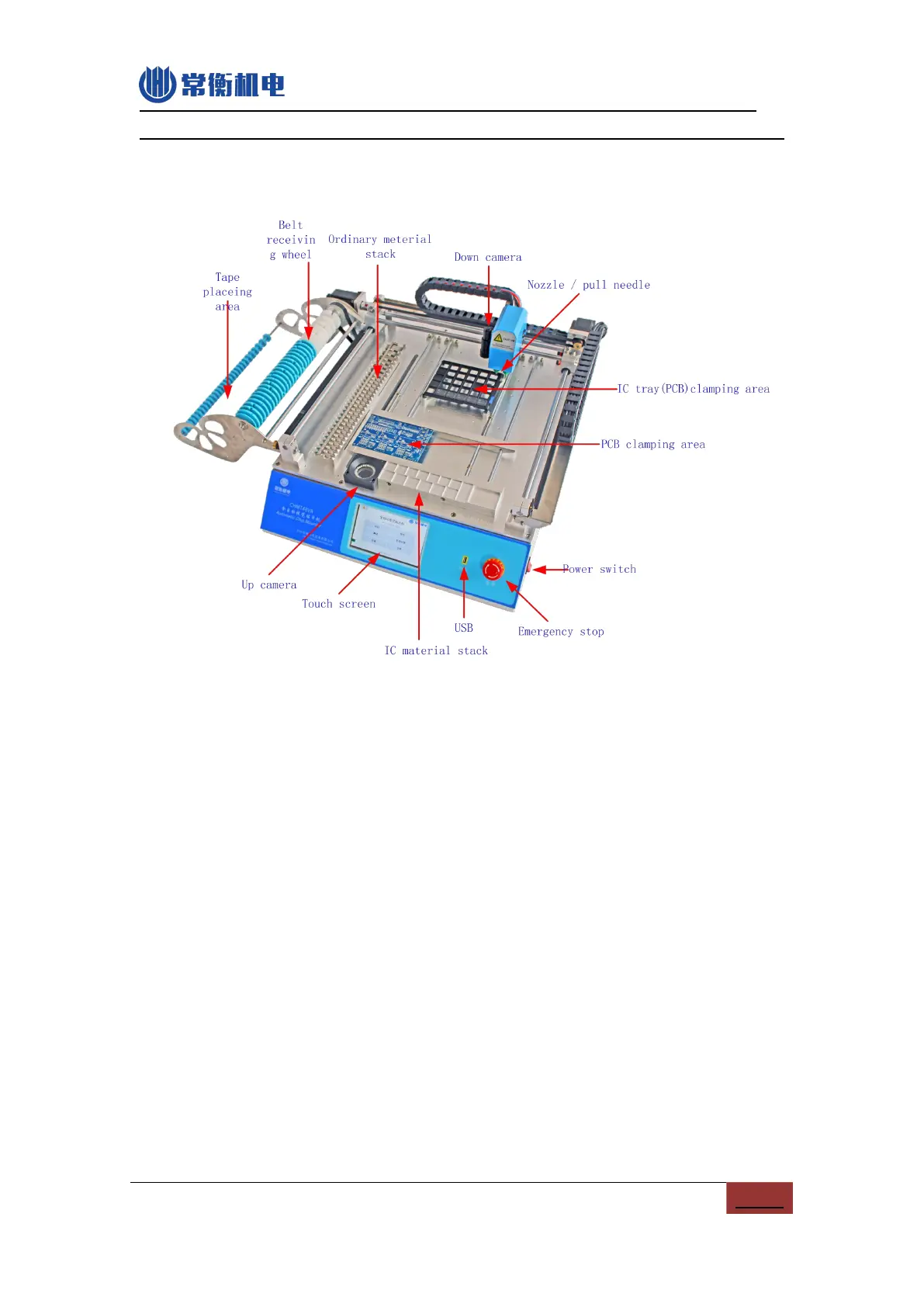

Figure.3- 2
(1) Up camera: Used for calibrating the components position, angle, so as to improve
placement accuracy.
(2) LCD touch screen: Used for operating the machine.
(3) IC material stack: used for place the big IC.
(4) USB port: Used for connect the USB storage device.
(5) Emergency stop switch: Emergency stop after press down, machine normal work
when clockwise rotation and bounce.
(6) Power button: Used for opening or off the machine.
(7) PCB clamping area: fixing the PCB, let PCB close to left, top spring should be
compacted.
(8) IC tray area: Used for fixing IC tray.
(9) Nozzle & Pull needle: Nozzle used for absorbing materials and mount on PCB,
pull needle used for pull the material go ahead.
(10)Down camera: Used for observing and location, and PCB MARK auto adjust.
(11)Ordinary material stack : Place tape packaging materials.
(12)Belt receiving wheel : Used for collecting film.
