Figure.9- 3

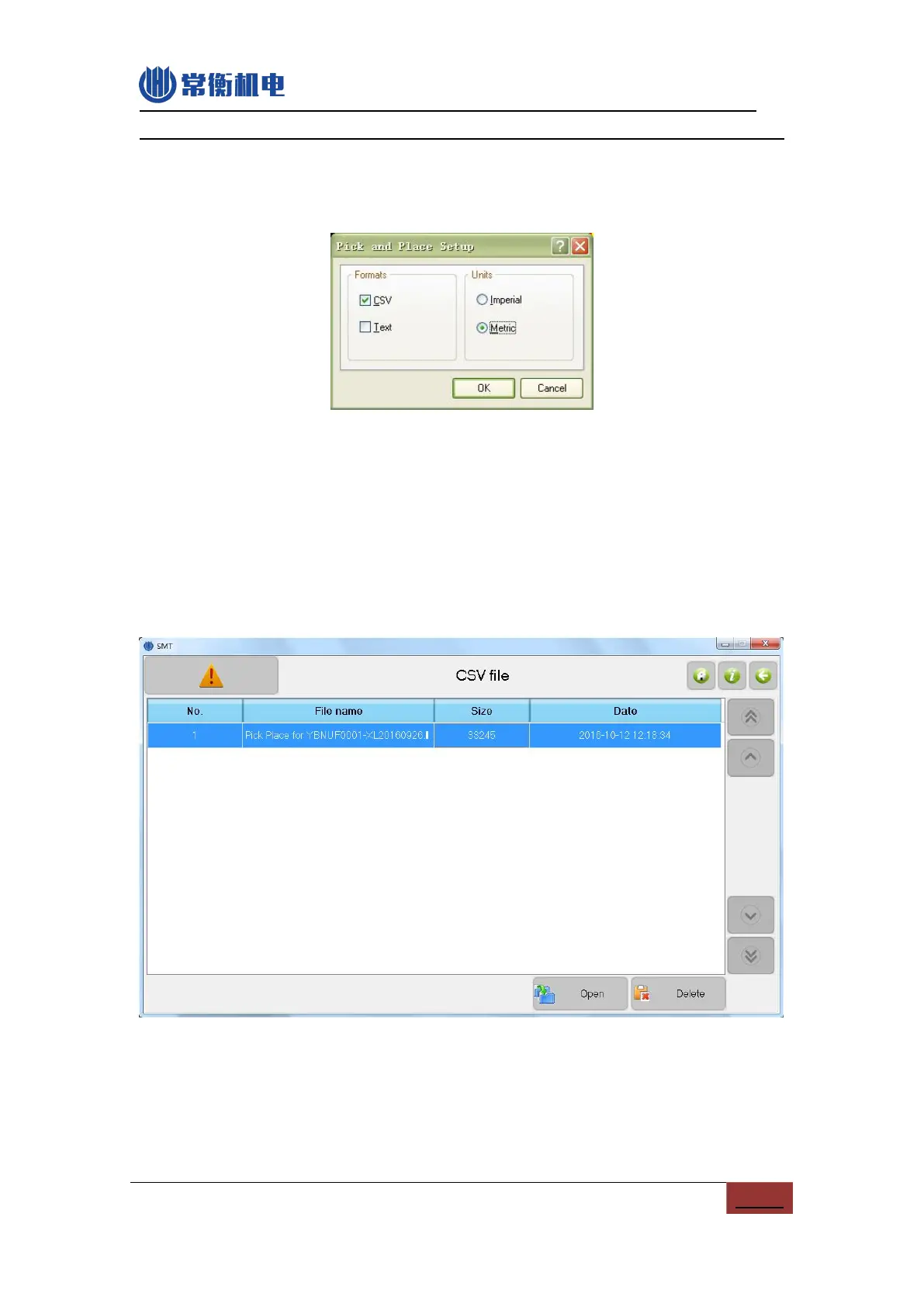

(4) Figure as below, select “CSV” and “Metric” in popup dialog box, click “OK” to finish,
generated CSV file can be found in same directory of PCB file.
Figure.9- 4
9.2.File Convert
Window as show below, all of CSV files in system are displayed in the list.
Figure.
9- 5
1、 Open：Open current selected CSV file，Enter file convert page.
2、 Delete：Delete current selected CSV file.
