Charmhigh CHM-T48VB User Manual

http://www.charmhigh.com
Charmhigh-V1.0-2016 | Hunan Charmhigh mechanical and electrical co., LTD
41
All Rights Reserved

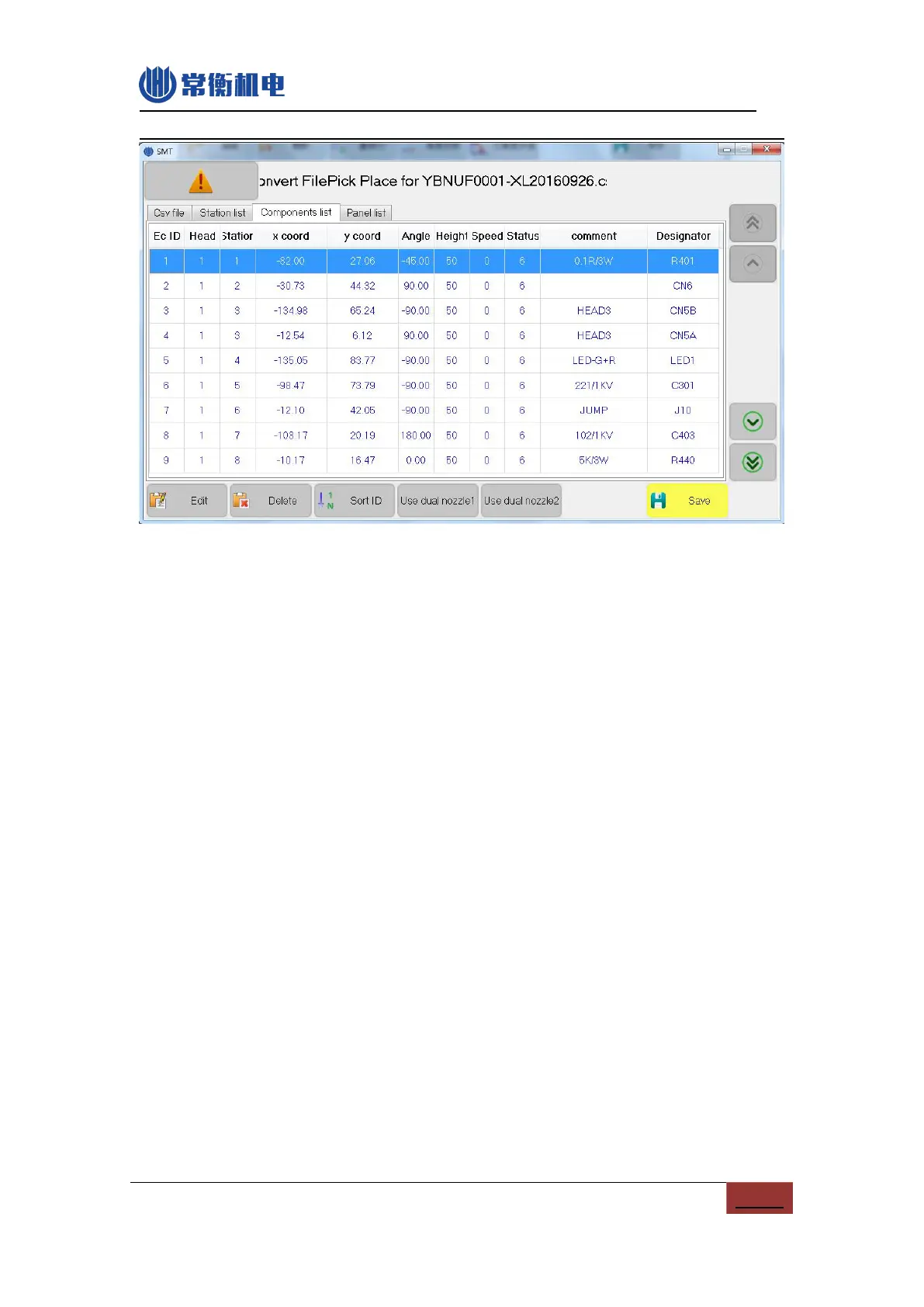

Figure.9- 8
(1) Components list: Show all of component in work file;
(2) Edit: Edit selected component;
(3) Delete: Delete selected component;
(4) Resort ID: The device number starting from 1 in ascending order;
(5) Use dual nozzle1: Check indicates that take two component in one time by using
two nozzle(same material stack), but component list must be sorted by material
stack;
(6) Use dual nozzle2: Check indicates that take two component in one time by using
two nozzle(difference material stack);
(7) Save: Save converted work file.
9.2.3.Batch
Window as show below.
