9.File
Used for managing work files and production files which generated by PCB
software, screen as show below.

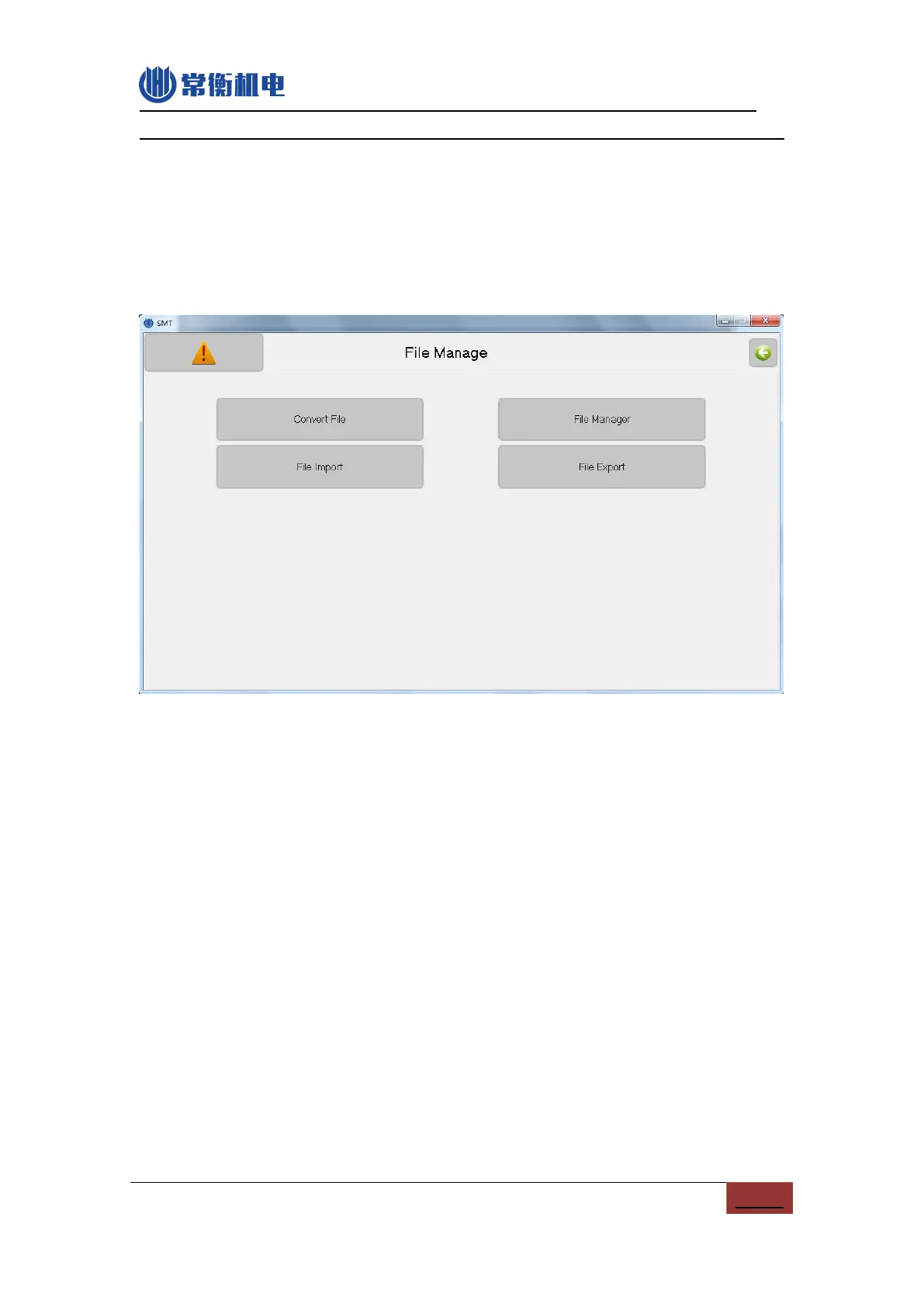

Figure.9- 1
(1) File Convert: In order to use CSV files generated by PCB software to work, a tool
that convert CSV file to work file is required, see the usage of convert tool below;
(2) File view: Browse all of CSV file and work file in system;
(3) File Load In\Load Out: Load In\Load Out CSV file or work file, button valid when
USB storage device is connected.
9.1.Generate CSV File
(1) Open existing PCB file, note, same component must have same designator,
otherwise one component may occupies more than one material stack, since
convert tool identifies different material stack by designator of component.
(2) Set PCB origin, figure as below, note, for top layer setting origin in left bottom
corner of PCB, for bottom layer setting origin in bottom right corner of PCB and
check mirror image option when converting.
