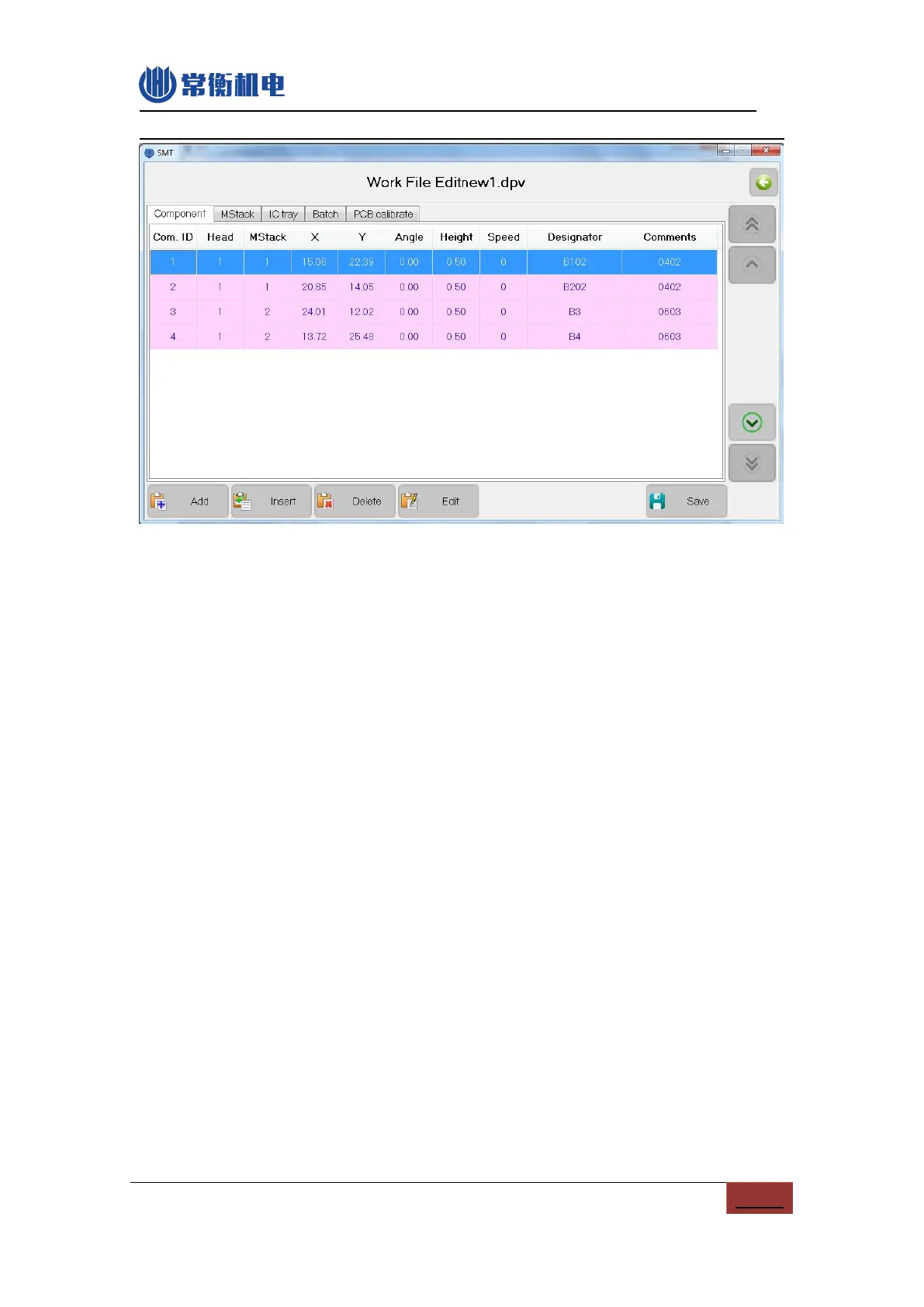

Figure.6- 2
6.1.1.Component edit
The screen as shown above, used for managing components on PCB.
(1) Component list: Show all components contained in the selected work file.
(2) Add: Add a component on the end of the sheet.
(3) Insert: Insert a new component before current component.
(4) Delete: Delete the selected component.
(5) Edit: edit the selected component, see below for details.
(6) Save: after amend the component list you need to save, if not save in time, the
save button will twinkle ,then press the button and save ,the twinkle end.
6.1.1.1.Edit Component
The pop up screen as shown below, the top left of the screen displays the current
component’s line number (start from 0),the arrows on both sides, used for selecting a
component before or after, also can click the middle button pop up keyboard to input
device line number directly.
To Next Page
Loading...
