6.1.2.Material Stack edit

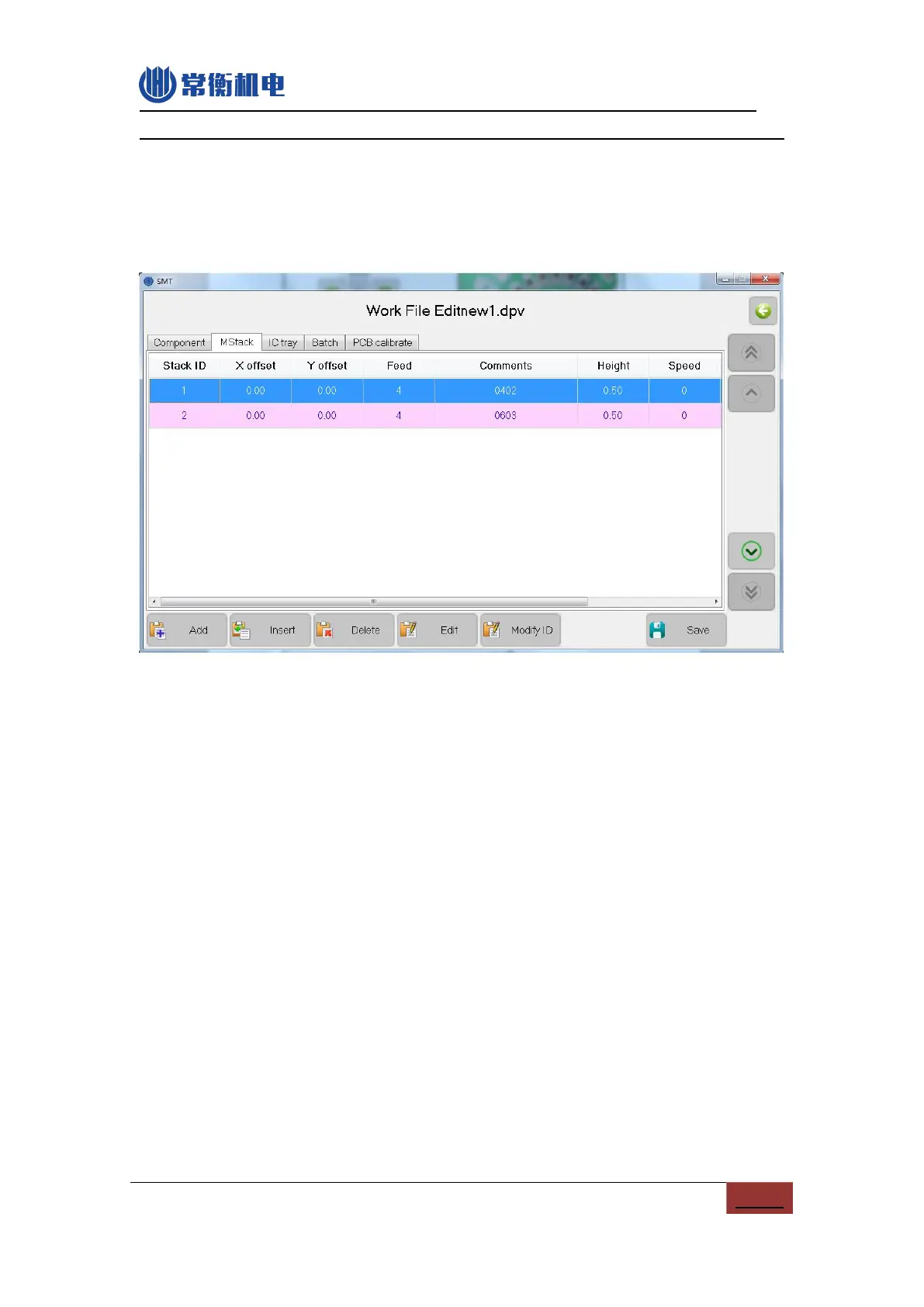

Screen show as below, in this page can manage different kinds of component’s place
position.
Figure.6- 6
(1) M Stack list: display all the stacks.
(2) Add: add a new stack at the end of stack list, the ordinary material stack is from
1~29(36VA, 48VA)/58(48VB), The IC from 60~79 stack, IC tray from 80~99
stack(details see below)
(3) Insert: insert a new stack
(4) Delete: delete the selected stack, note: delete this stack, the components will be
delete as well.
(5) Edit: edit selected stack, image as below:
