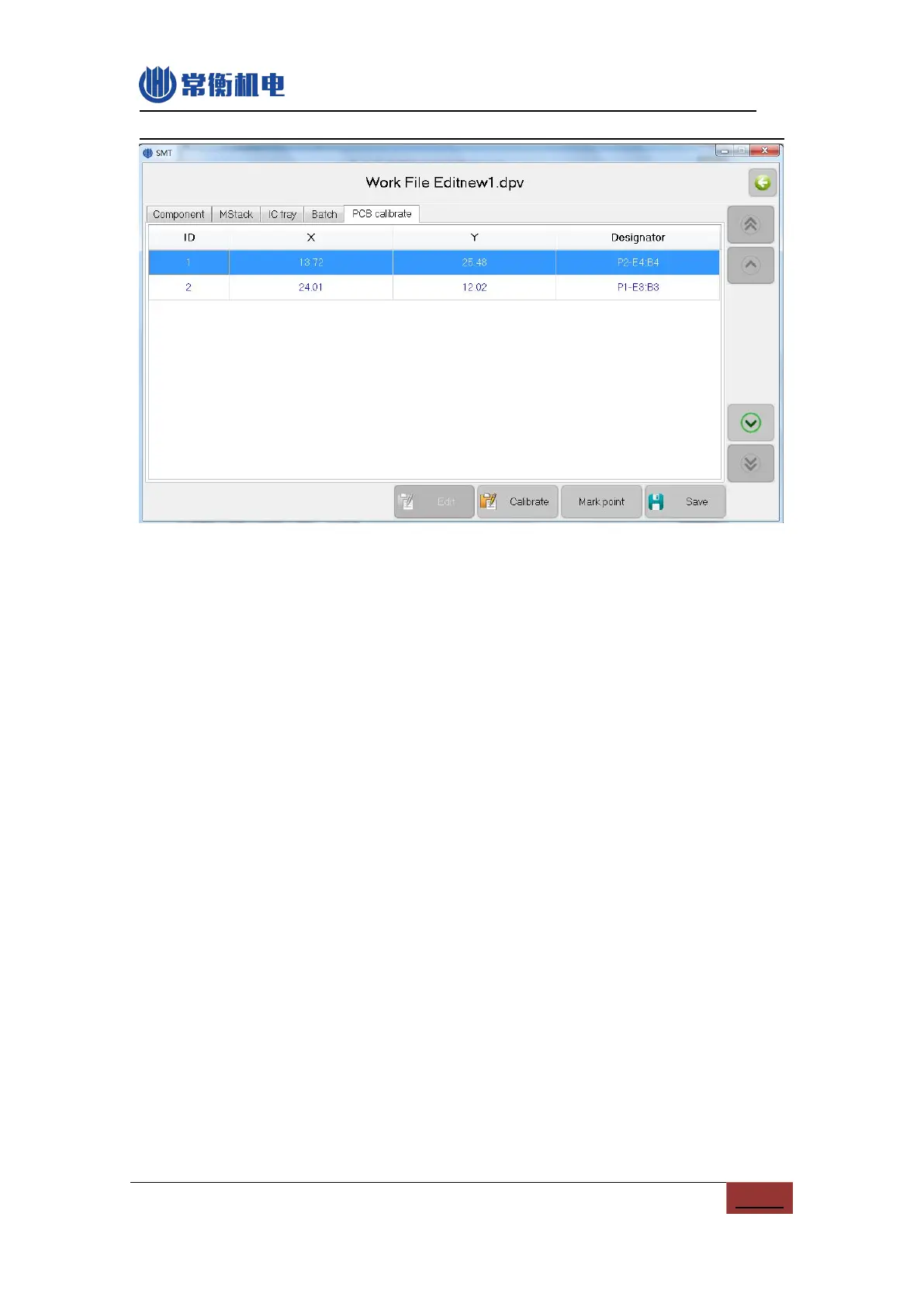

Figure.6- 16
Depending on choice to calibration point, there are two PCB calibration type.

EC: Machine select two component from PCB to calibrate automatically, its PCB
coordinate is known, and do not need to input by user, the designation in the list
of figure as show above, the number after character “P” indicates batch PCB ID,
number after character “E” indicates component ID, and string after “:” is the
designation of component;
 MARK: User select two specific point(MARK point) from PCB, input its PCB
coordinate to calibrate manually, point in is recommended.
Note, if use array mode of batch, the choice of calibration point should be top left
corner and bottom right corner of the whole PCB which consist of several same
PCB.Window as show below, click in sequence to locate actual position of calibration
points.
