Chatillon DFS II - Pinouts

DF II Series User Manual 39
PINOUTS

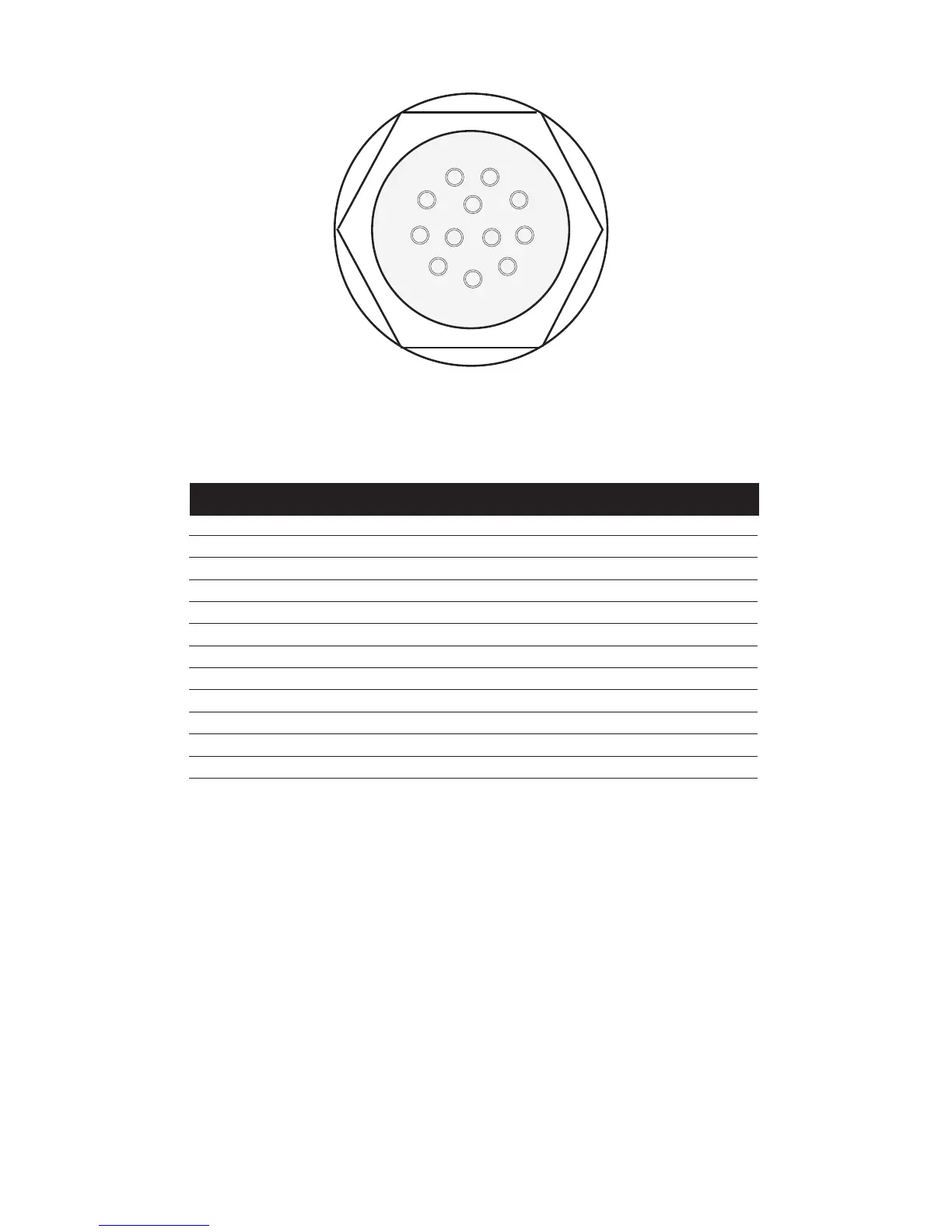

The DF II Series is supplied with a 12-pin female connector to provide RS232, Mitutoyo and analog outputs.
Thepinoutoftheconnectorisshownabove.Pinassignmentsaredenedinthetablebelow.
1 TXD O RS-232 Transmitted Data
2 RXD I RS-232 Received Data
3 GND O Ground Digital Ground
4 O Clock Mitutoyo Clock
5 O Ready Mitutoyo Ready
6 I Request Mitutoyo Request
7 O Data Mitutoyo Data
8 I Detect Sense Contact Closure
9 O Setpoint Setpoint Output Signal
10 - Ground Digital Ground
11 - Analog GND Analog Ground
12 O Analog SIG Analog Output
PIN SYMBOL I/O PURPOSE DESCRIPTION
9
8
7
6
5
4
3
2
1
10
12
11
