DF II Series User Manual 43
CONNECTING A SERIAL PRINTER
Connect the DF II Series gauge to the serial
printer using the gauge output connector and the
serial cable provided with the gauge (p/n SPK-
DF-RS232). The serial data cable has a Hirose
connector for the gauge and a D-Type 9-Pin male
connector for the printer.
Congurethegaugeoutputs(SeeUsingOutputs)
and match the baud rate in the gauge to the baud
rate for the printer.
CONNECTING A MITUTOYO PRINTER

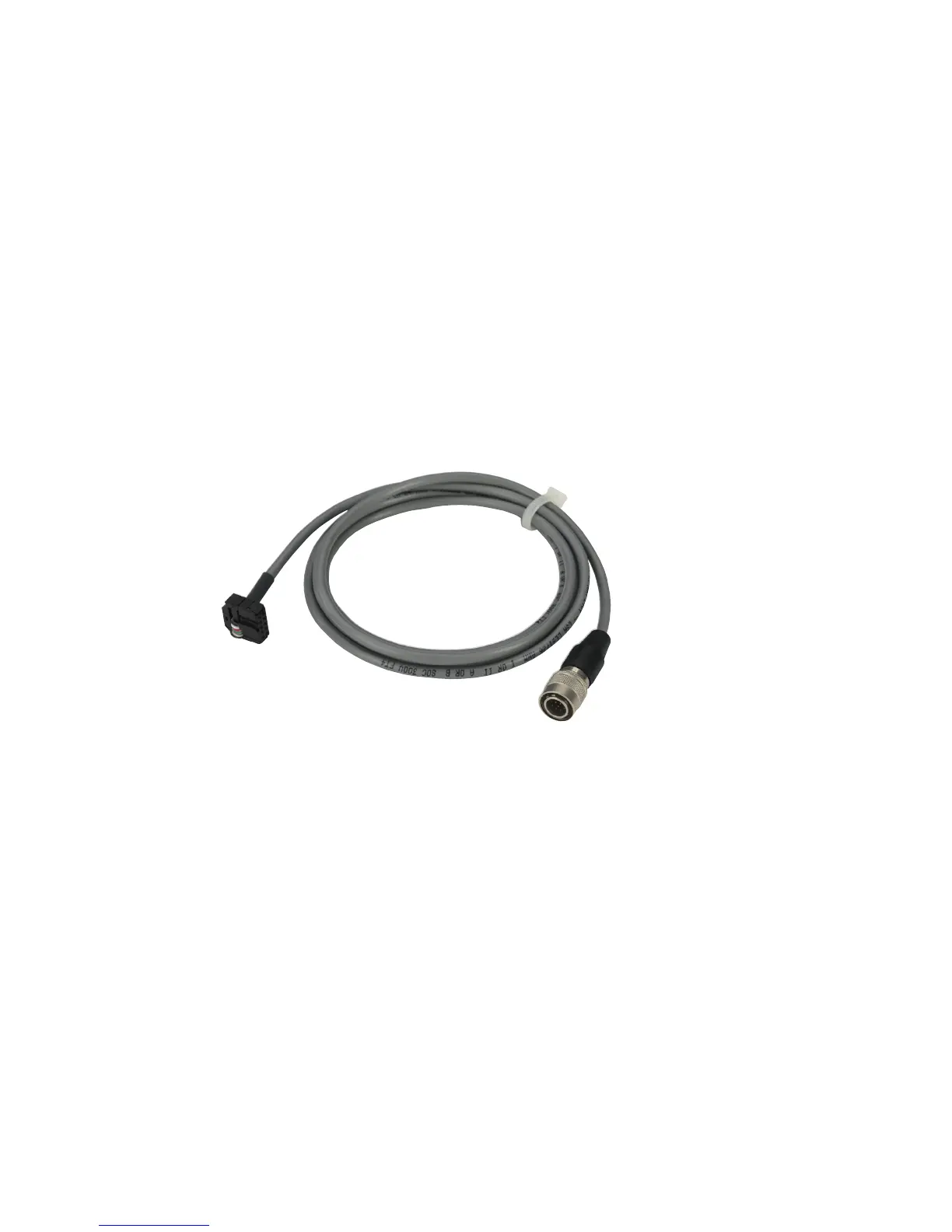

Connect the DF II Series gauge to a Mitutoyo
printer using the optional Mitutoyo cable (p/n
NC000654). The Mitutoyo cable is a 10-pin con-
nector cable with a Hirose connector for the gauge
and a 10-pin male connector for the printer.
CongurethegaugeoutputtypetoMITUTOYO.
The gauge will transmit data with units to the
Mitutoyo printer.
Read the manual that came with the Mitutoyo printer
to determine the printer setup requirements.
NC000654
