26 DF II Series User Manual
USING PASS-FAIL LIMITS
The DF II Series force gauge allows you to setup
PASS-FAIL LIMITS based on either a Range of
values or on a Nominal Value.
Pass-Fail Limit - Range
You may setup your DF II Series gauge to display
a green PASS or red FAIL message based on
whether or not the measured results falls within
an upper and lower setpoint range. The gauge
will display green PASS or red FAIL depending on
how the measured result compares to the setpoint
range.
Example: The DF II Series will display green
PASS if the measured result is 11.2 lbf and the
upper setpoint was 12.0 lbf and the lower setpoint
was 10.0 lbf.
Conversely, if the measured result was 9.8 lbf, the
gauge would display red FAIL.
If the measured result is equal to or within the
Range Limits, the result = PASS.
If the measured result is outside the Range Limits,
the result = FAIL.

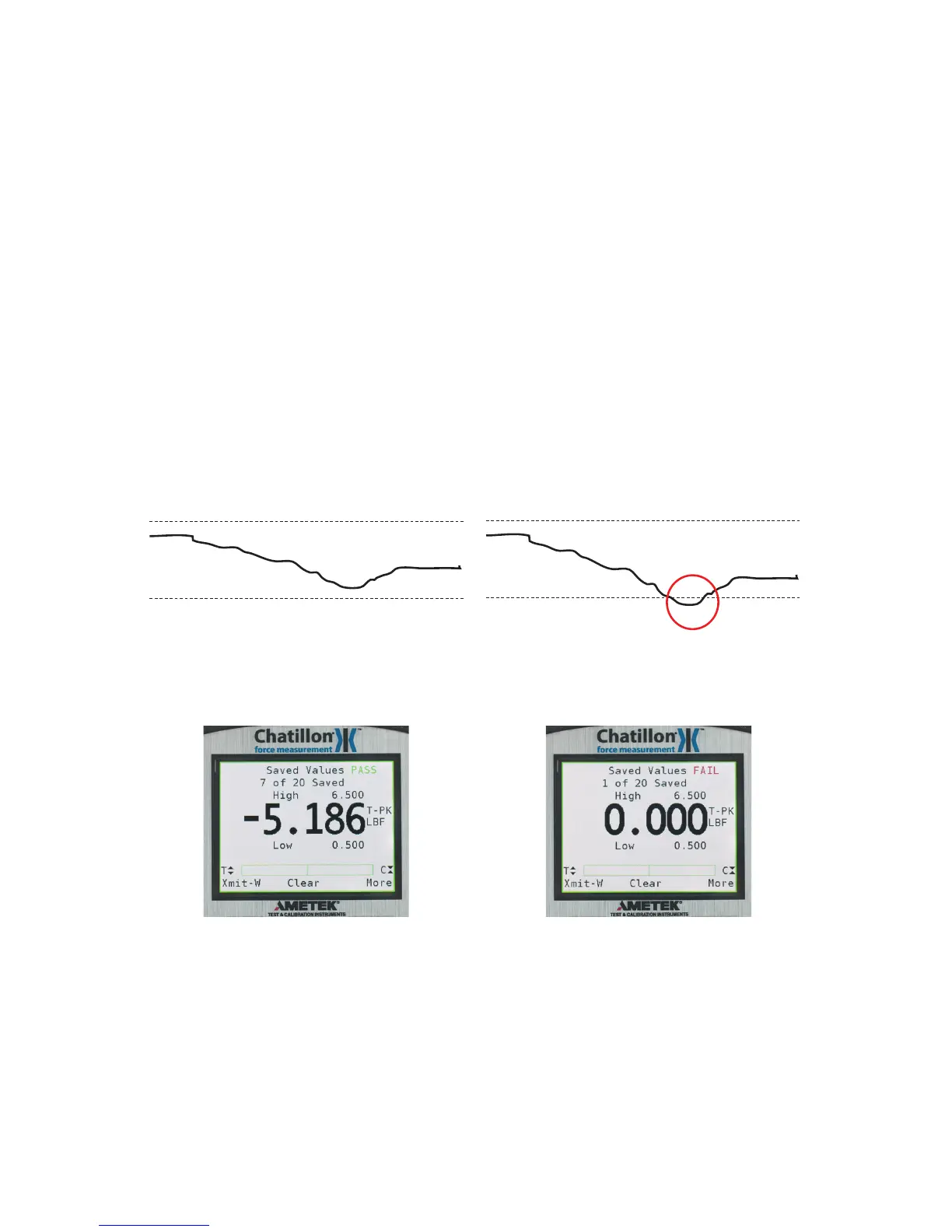

Low Setpoint
High Setpoint
Result = Fail
Low Setpoint
High Setpoint
Result = Pass
