SR113 Family

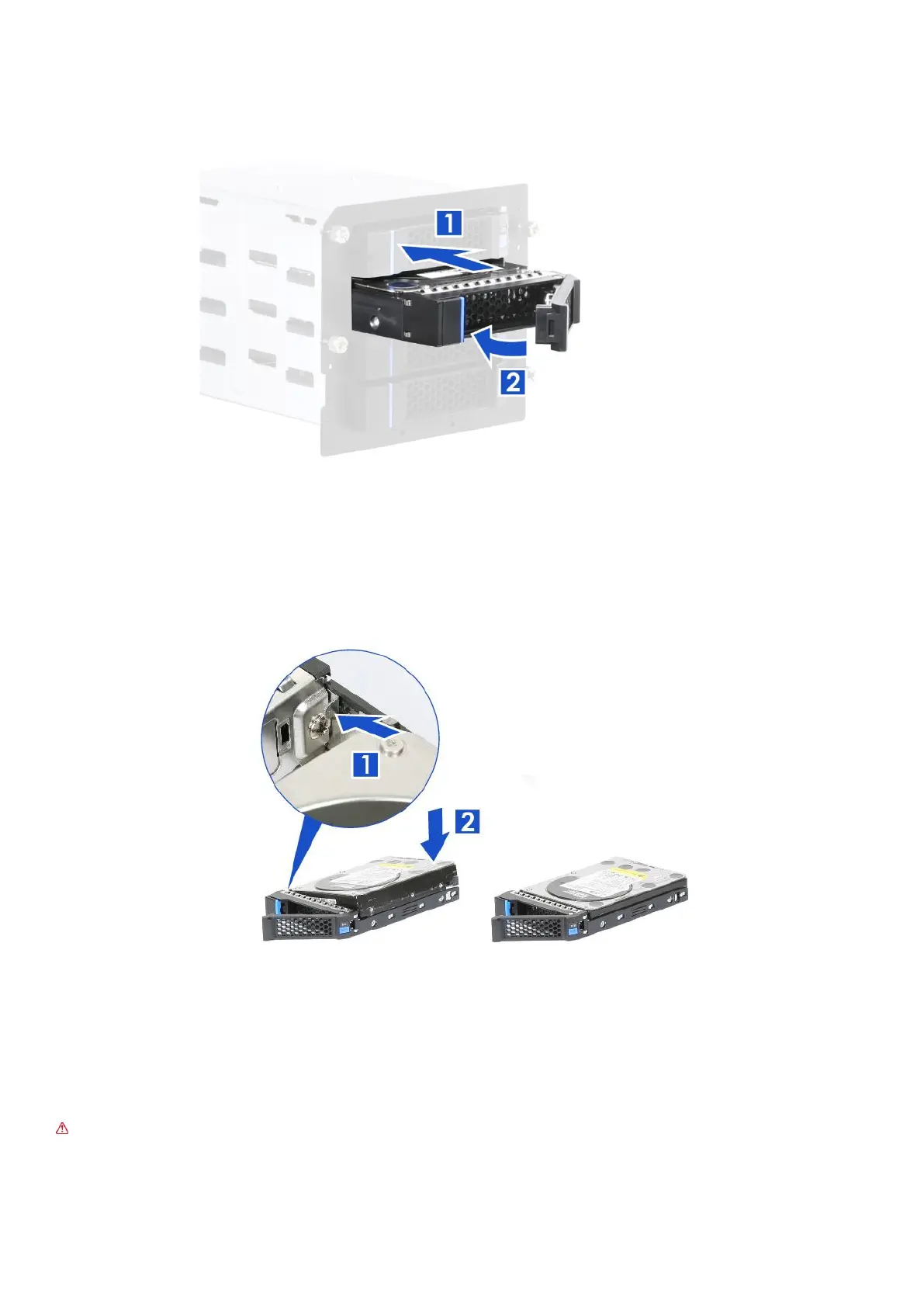

Figure 25 3.5" HDD tray installation

1. Insert the HDD tray into the cage.

2. Push down the lever to secure the HDD tray.

Figure 26 3.5" HDD installation (tool-less type)

1. Engage two embossed pins into the side dimples on the HDD as shown.

2. Carefully push down the other side of the HDD until another two embossed pins and side dimples lock into place.

NOTE: Due to degraded performance and reliability concerns, the use of the 3.5” drive tray as a 2.5” drive tray is intended to

support SSD type storage devices only. Installing a 2.5” hard disk drive into the 3.5” drive tray cannot be supported.
