SR113 Family

Backplane │ 45

3-5 2.5” 8-Port 12Gb/s SAS Passive Backplane

Table 13 Backplane specifications

Specification

Host Interface

Mini-SAS HD

Device Interface

SFF-8680

Hot-Swap

Yes, allows users to replace storage devices on line

Display

LED indicates storage device status

Power LED – Off (Fault)

– Blue on (Present)

Activity LED – Green on(Access)

– Red on (Failure)

– Red 1Hz blink (Rebuild)

– Red 4Hz blink (Locate)

Environment Monitor

Temperature sensor TMP75 (U3)

Connectors

1. 8 x SFF-8680

2. 2 x Mini-SAS HD

3. 1 x 8-pin ATX Mini-Fit power connector for +12V only

4. 4 x 4-pin fan connectors

5. 2 x 4-pin I2C connectors

6. 1 x 6-pin SMD switch

Dimension

142.0(L) x 580(W) x 2.4(H) mm

Material

FR4 8 layers

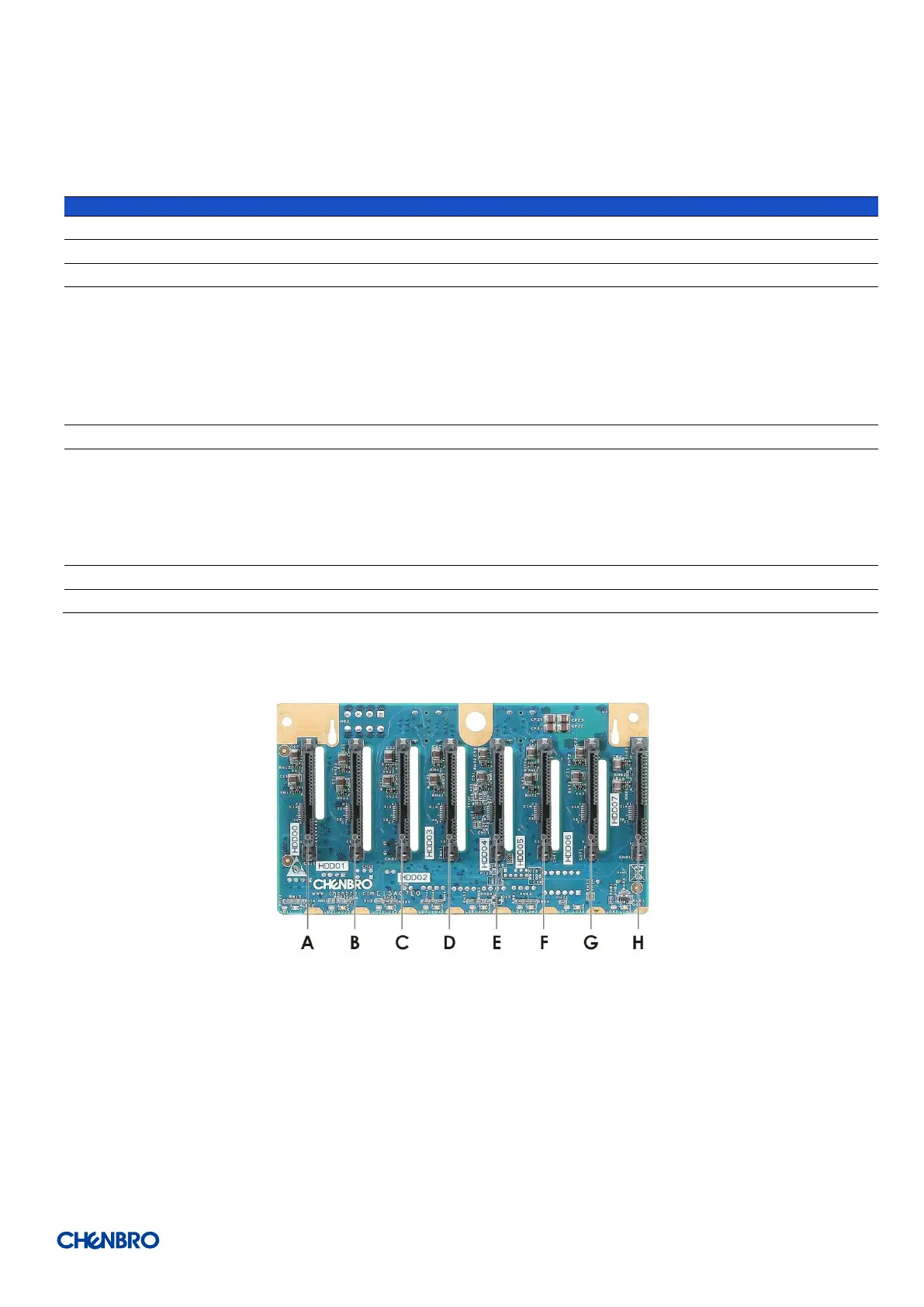

Figure 52 Backplane front view

A. HDD_0

B. HDD_1

C. HDD_2

D. HDD_3

E. HDD_4

F. HDD_5

G. HDD_6

H. HDD_7
