SR113 Family

3-2 3.5” 12Gbps Mini-SAS Backplane

Table 7 Backplane specifications

Specification

Host Interface

Mini-SAS HD (SFF-8643)

HDD Interface

SFF-8680

Hot-Swap

Yes, allows users to replace devices online

Display

LED indicates storage device status

Power LED – Blue (Present)

Access LED – Green (Busy)

Error LED – Red (Error)

Environment Monitor

Temperature sensor TMP75

Connector and Header

1. 1 x Mini-SAS HD

2. 4 x SFF-8680 SAS

3. 4 x Big 4-pin power connector for +5V & +12V from power supply

4. 1 x pin header 2.00 mm (1 x 3)

5. 1 x pin header 2.00 mm (2 x 3)

6. 1 x pin header 2.54 mm (2 x 3)

7. 1 x pin header 2.54 mm (2 x 5)

8. 1 x 4-pin Wafer 2.50 mm

9. 2 x 2-pin Wafer 2.54 mm

10. 1 x 4-pin Wafer 2.54 mm

1 x I2C

Dimension (L x W x H)

106.0 x 114.0 x 2.4 mm

Material

FR4 4 layers

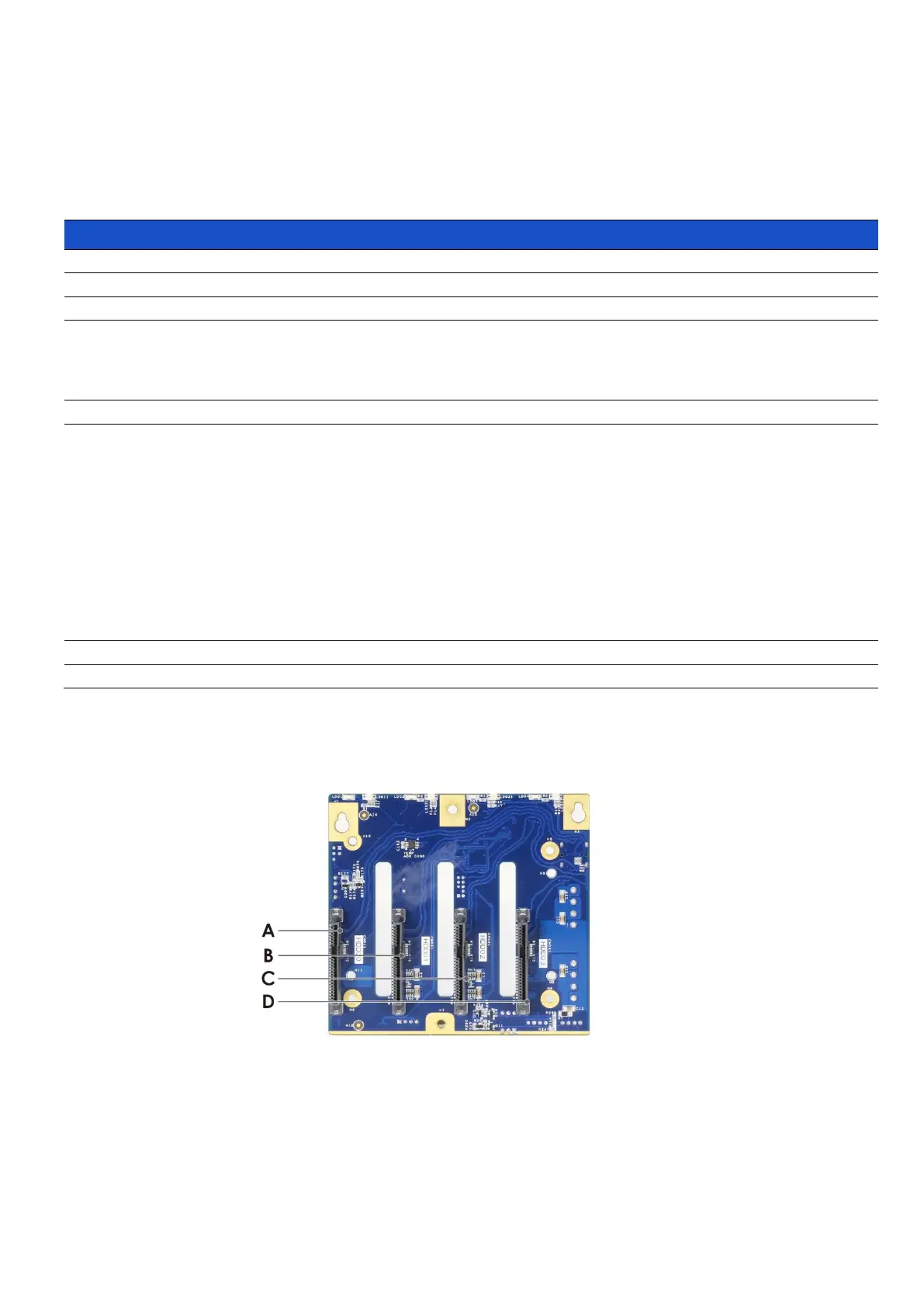

Figure 46 Backplane front view

A. HDD_00

B. HDD_01

C. HDD_02

D. HDD_03
