Chenbro SR113 Series - Pcie Card Retainer Installation; Figure 34 Pcie Card Retainer Installation; Figure 35 Card Retainers Guide Pin

47 pages

To Next Page

To Previous Page

SR113 Family

2-11 PCIe card retainer installation

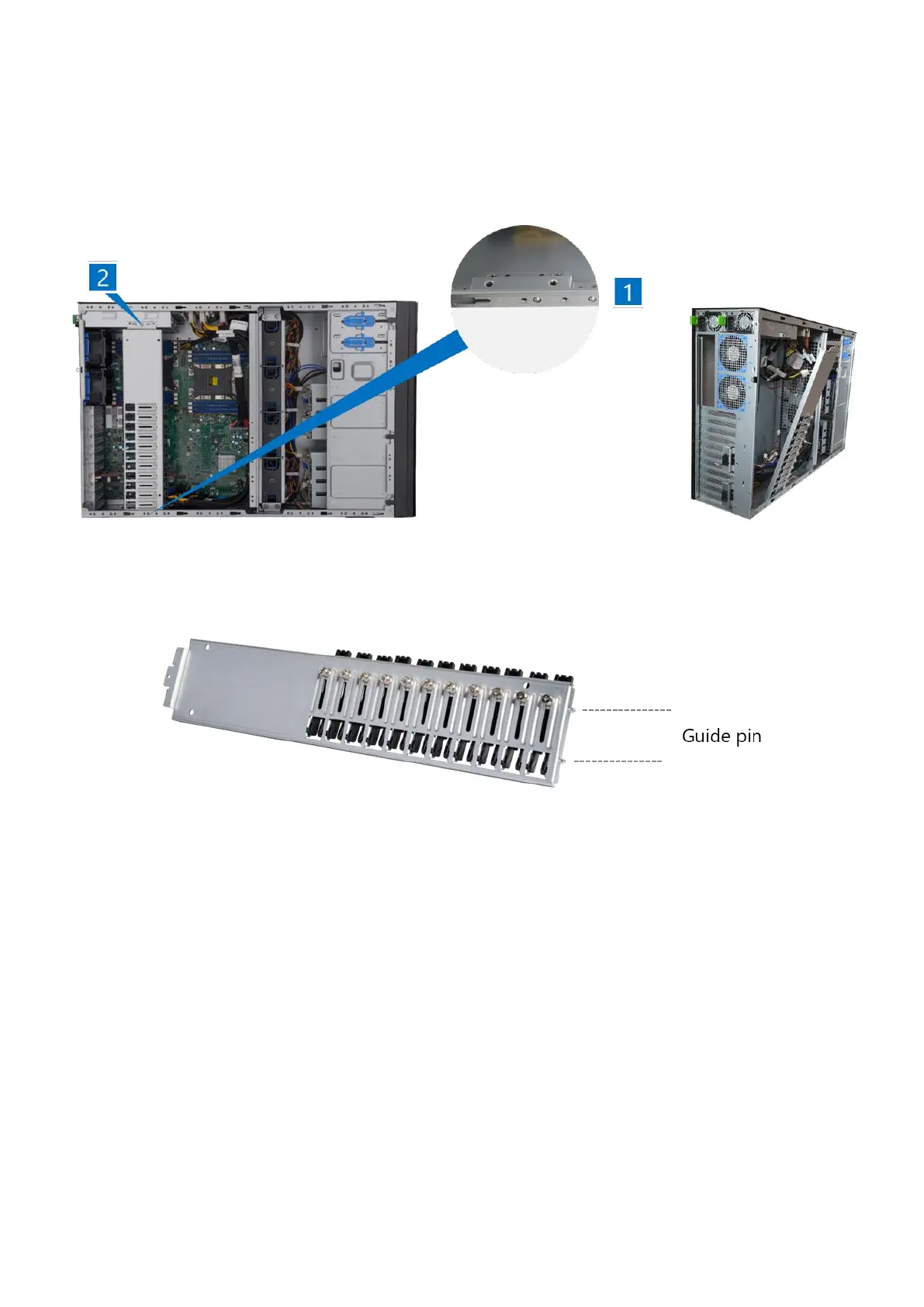

Figure 34 PCIe card retainer installation

Figure 35 Card retainer's guide pin

1. Align the guide pin of the PCIe card retainer with the positioning point of the chassis as shown.

2. Secure the screw on the PSU cage.
