SR113 Family

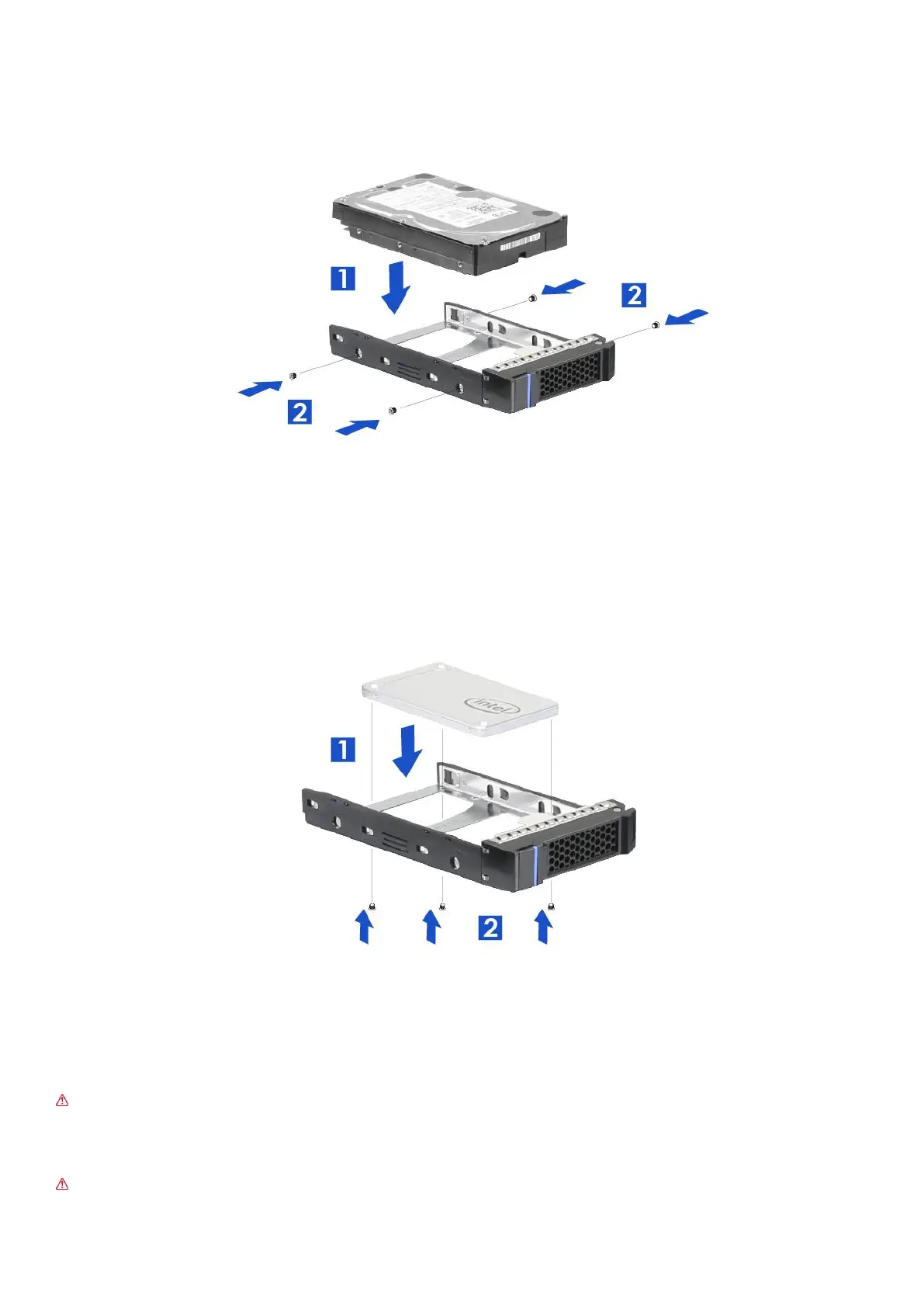

Figure 27 3.5" HDD installation (screw type)

1. Align front HDD with the anchor point on the tray.

2. Assemble 3.5” HDD with tray by four screws as shown.

Figure 28 2.5" HDD installation (screw type)

1. Align front HDD with the anchor point on the tray.

2. Assemble 2.5” SSD into the tray by three screws from the bottom as shown.

NOTE: To ensure proper system airflow requirements, all front drive bays are suggested to populate with a 3.5" drive tray where

it is supposed to be installed with a 3.5” drive, a 2.5” drive with plastic dummy filler or only dummy fillers. In addition, in order

to support a 2.5” drive in a 3.5” tray, a screw-type tray is required.

NOTE: Dedicated screw type is required for 2.5” SSD Installation, Chenbro P/N: 384-14602-3143A0.
