CHINT NVF5 Series User Manual

NVF5 Series User Manual Chapter 2 Product Overview
W
H
D
W1
H1
d

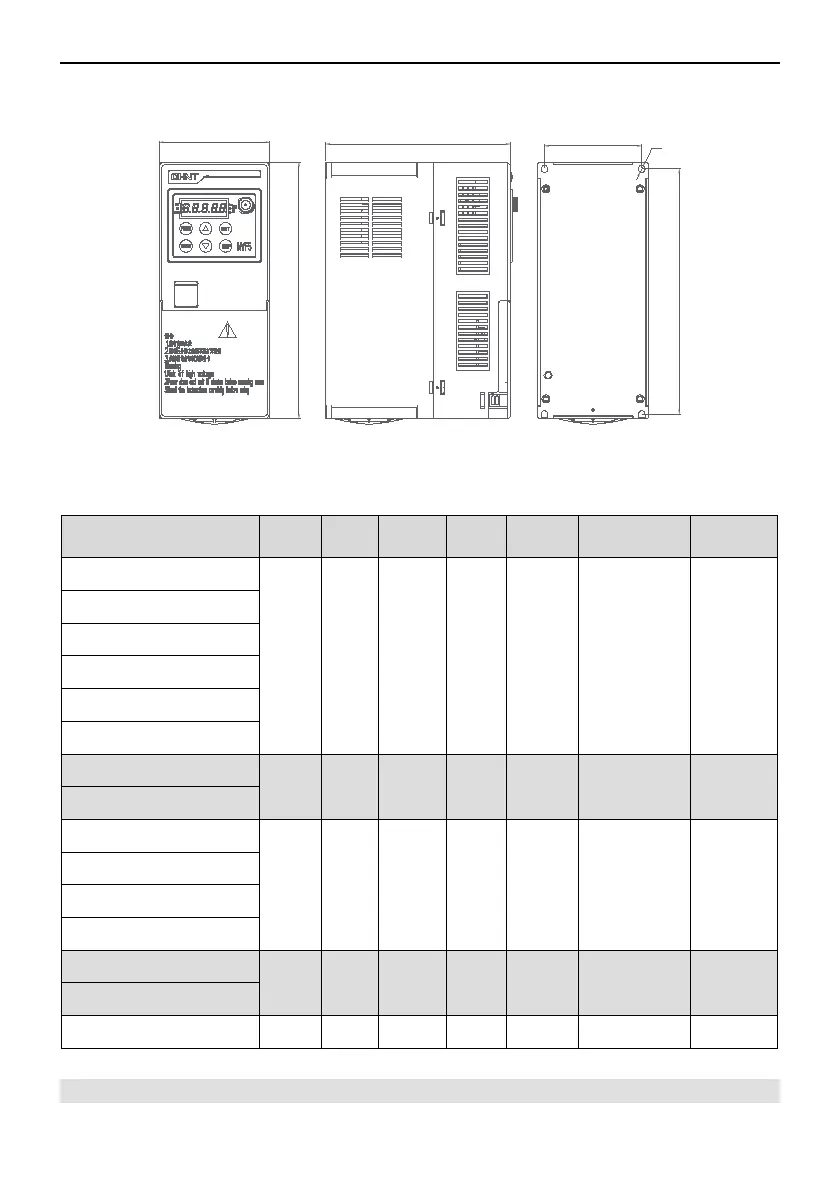

Figure 2-6-2 NVF5-3.7/TS4-B～NVF5-7.5/TS4-B Appearance Diagram
And Installtion Dimension
Table 2.3Dimensions and Weights（Unit：mm）
2.7 IP22 Top Protective Cover Description
Catalog No. W H D W1 H1
Mounting
hole d
Weight
kg
NVF5-0.4/TD2
75 148 125.2 64 137.5 Φ5.3 1.2
NVF5-0.4/TD2-B
NVF5-0.75/TD2
NVF5-0.75/TD2-B
NVF5-1.5/TD2
NVF5-1.5/TD2-B
NVF5-2.2/TD2
75 148 146.7 64 137.5 Φ5.3 1.25
NVF5-2.2/TD2-B
NVF5-0.4/TS4-B
75 148 125.2 64 137.5 Φ5.3 1.03
NVF5-0.75/TS4-B
NVF5-1.5/TS4-B
NVF5-2.2/TS4-B
NVF5-3.7/TS4-B
89.5 206 149.2 78.5 196.8 Φ5.5 1.79
NVF5-5.5/TS4-B
NVF5-7.5/TS4-B 118 216 163.4 105 205 Φ6 2.78
- 11 -
