NVF5 Series User Manual Chapter 3 Installation and Wiring

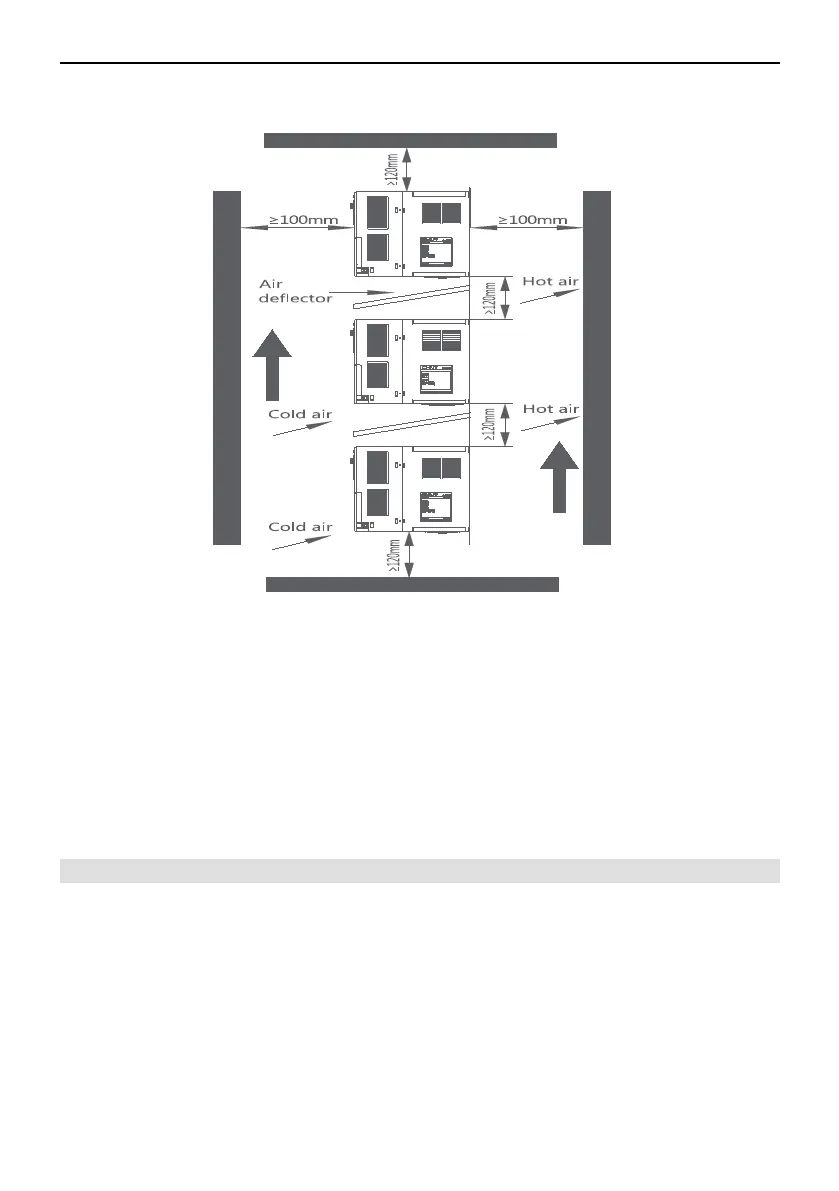

（2）multiple vertical installation
Figure 3-3-2 Vertical installation Diagram
（3）Installation Confirmation
Step1：Check whether the packing box is damaged or damp,whether the label of the
package consistent with the inverter which you purchased,whether the label of the
package consistent with the inverter nameplate;
Step2：Check whether the internal accessories of the inverter are complete；
Step3：Check wheter the installation environment、installation distance、installation
position are correct；
If there are any abnormal,please contact Chint technical support.
3.4 Description of the cover
- 17 -
