F8.33
Timer Running
Timer
0.0min
（0.0 ～ 6500.0）min
-
6.20 Start At Power Up
Enable/disable inverter automatically start on power up with different Start
Commands and the Auto Restart delay time.
Code Name Default Setting Range Description
F8.35
Auto Restart
Function
Selection
0
0 ～ 1
0：Ineffective
1：Effective
F8.36
Auto Restart
Delay Time
0.0s
（ 0.0 ～ 10.0）s
-
6.21 Sleep Wake Mode
Sleep function is mainly used in pump water supply, air supply control fields requiring
automatic sleep,this function can make inverter output 0 Hz when reaching user setting
preset sleep leve which realize energy saving. Sleep function needs to be combined with
PID function.See process diagram 6-9-6.
If the sleep function is switched on （F8.37 set to 1，F9.28（Close loop run mode）
set to 1（run when stop））， and the system is in running mode，When the output frequency
is detected less than or equal to the sleep frequency（F8.38） and the duration reaches the
sleep delay time（F8.39）, inverter enters the sleep mode automatically（Inverter run in0Hz）；
When PID feedback（Fd .29）is less than PID reference（Fd .28），and the deviation is more
than wake leve（F8.40）， and the duration reaches the wake delay time（F8.41），inverter
enters the wake mode automatically,and the system leave sleep mode automatically and
inverter run again.
Sleeping
Freq.
Hz
t
Setting
Freq.
Ref.-Wake
offset
Feedback
Ref.
t
0
Sleeping
delay
Wake
delay

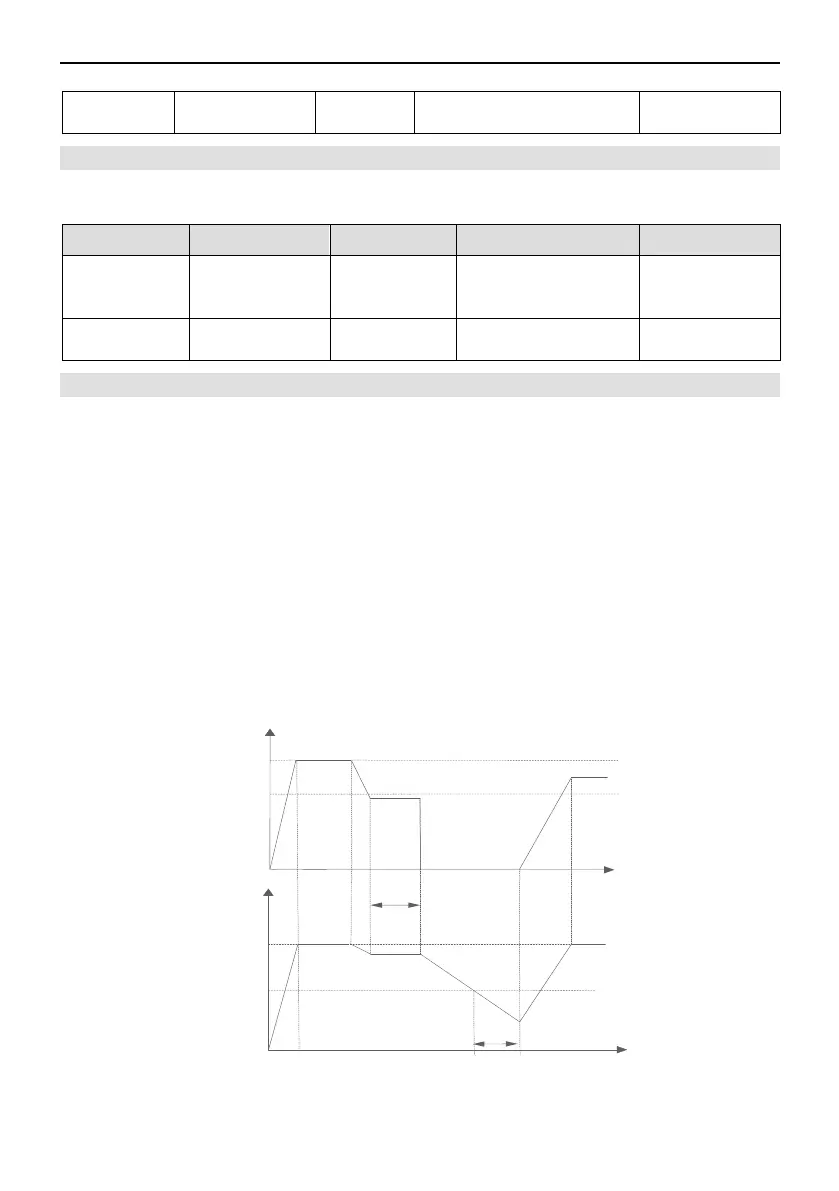

Figure 6-21-1 Sleep and Wake
