CHINT NVF5 Series User Manual

NVF5 Series User Manual Chapter 6 Parameter Function Description
FE.16
Judgement Voltage of
Instantaneous Power
Failure
80.0%
（60.0 ～ 100.0）
%
100% equals
Standard DC
Bus Voltage
● Deceleration Operation Mode：When the power line recovers, the Output Frequency
of the inverter will be restored to the target frequency according to the accel. Time.
● Deceleration Stop Mode：When the power line recovers, the inverter continues to
slow down to 0Hz then stop, and the inverter will not start until the inverter start again.
6.13 Jogging
Jogging function is used on low speed equipment tesing for a short time. When in
Jogging mode,the starting mode is fixed as a direct start mode F1.00=0，stopping mode is
fixed as a ramps decel. Stop mode F1.05=0。
Note: There is no Jogging key on the Integral Keypad. To achieve this function, digital
input (DI)should be selected.
Code Name Default Setting Range Description
F5.01 DI1 Function 1
0 ～ 63
3：Jog
Forward
4：Jog
Reverse
F5.02 DI2 Function 4
F5.03 DI3 Function 9
F5.04 DI4 Function 12
F5.05 HDI Function 0
F8.00 Jog Frequency 5.00Hz
0.10 ～ F0.07
-
F8.01 Jog Accel. Time 20.0s
（0.0 ～ 6500.0）s
-
F8.02 Jog Decel. Time 20.0s
（0.0 ～ 6500.0）s
-

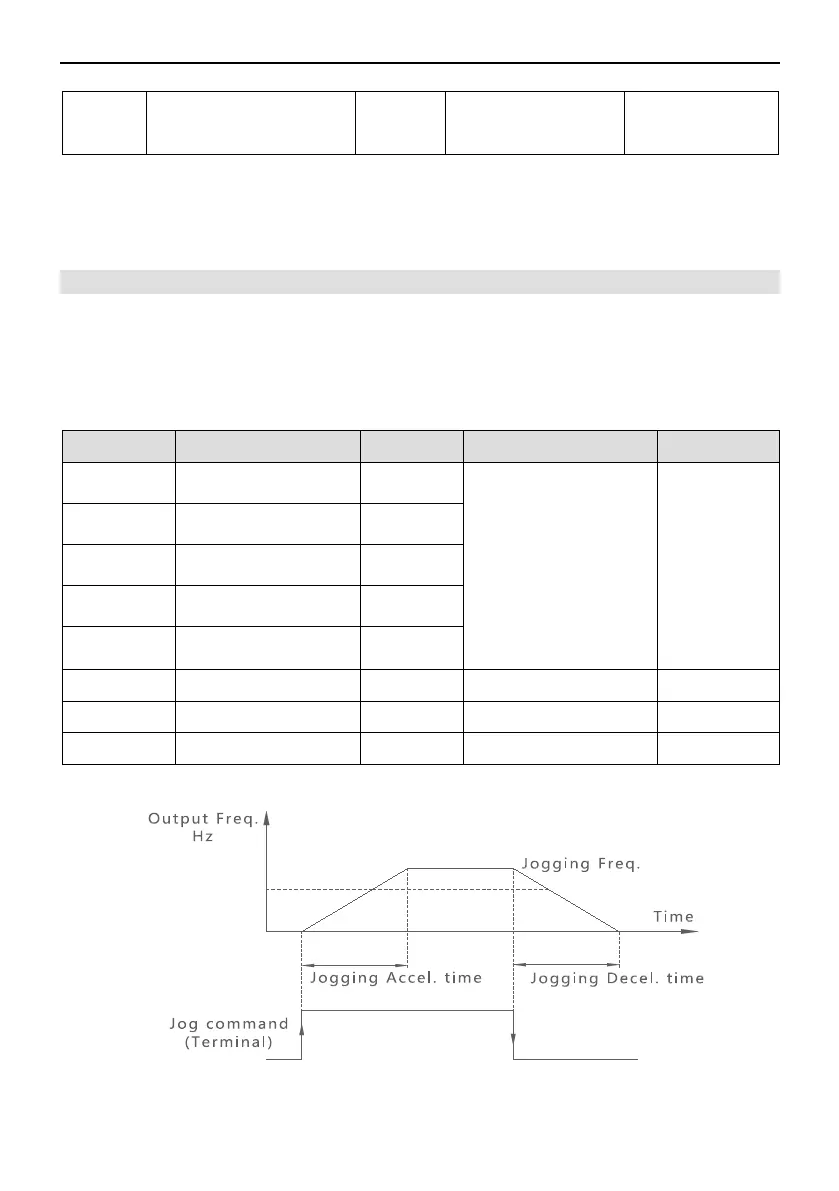

Figure 6-13-1 Jogging
- 86 -
