Chroma 63205 - Page 21

General Information
Current read back
Range 0-10A 0-100A 0-18A 0-180A 0-60A 0-600A
Resolution 15 bits 15 bits 15 bits 15 bits 15 bits 15 bits
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS 0.1%+0.1%FS
Power read back
Range 0-520W 0-5200W 0-650W 0-6500W 0-1040W 0-10400W
Resolution 15 bits 15 bits 15 bits 15 bits 15 bits 15 bits
Accuracy 0.3%+0.3%FS 0.3%+0.3%FS 0.3%+0.3%FS
General
Short circuit
Current 10A 100A 18A 180A 60A 600A
SIZE (mm) 440(W) X 353(H) X 644(D) 440(W) X 310(H) X 644(D) 440(W) X 443.7(H) X 644(D)
WEIGHT 58Kg 64Kg 90Kg
EMC & Safety CE CE CE
*Specifications are subject to change without notice.

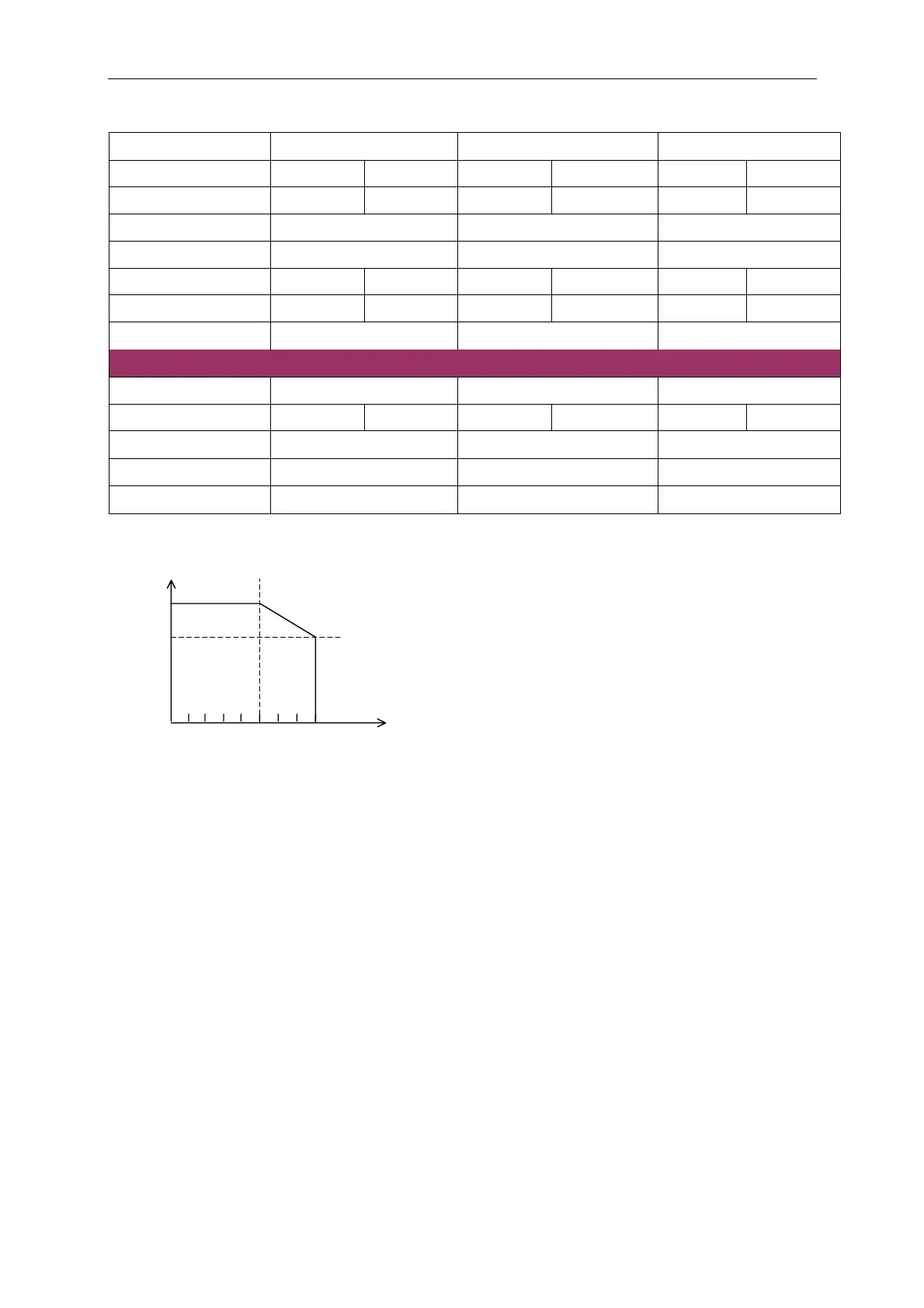

1. The power rating specifications at ambient temperature = 25°C and see the diagram below for power derating.
Power Rating
100%
77%
°C
Ambient Temperature
10°C 20°C 30°C 40°C
2. The Vin must be greater than min. operating voltage of each model.
3. The Vin must be greater than 7V of each model.
All CR mode accuracy should be referring to the CC mode accuracy.
4. Setting error will be 1% for R < 0.005Ω at CRL range.
1-7
