General Information
Current read back
Range 0-30A 0-300A 0-60A 0-600A 0-100A 0-1000A
Resolution 15 bits 15 bits 15 bits 15 bits 15 bits 15 bits
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS 0.1%+0.1%FS
Power read back
Range 0-1040W 0-10400W 0-1560W 0-15600W 0-1560W 0-15600W
Resolution 15 bits 15 bits 15 bits 15 bits 15 bits 15 bits
Accuracy 0.3%+0.3%FS 0.3%+0.3%FS 0.3%+0.3%FS
General
Short circuit
Current 30A 300A 60A 600A 100A 1000A
SIZE (mm) 440(W) X 443.7(H) X 644(D) 546(W) X 843.7(H) X 700(D) (cabinet) 546(W) X 843.7(H) X 700(D) (cabinet)
WEIGHT 90Kg 150Kg 150Kg
EMC & Safety CE CE CE
*Specifications are subject to change without notice.

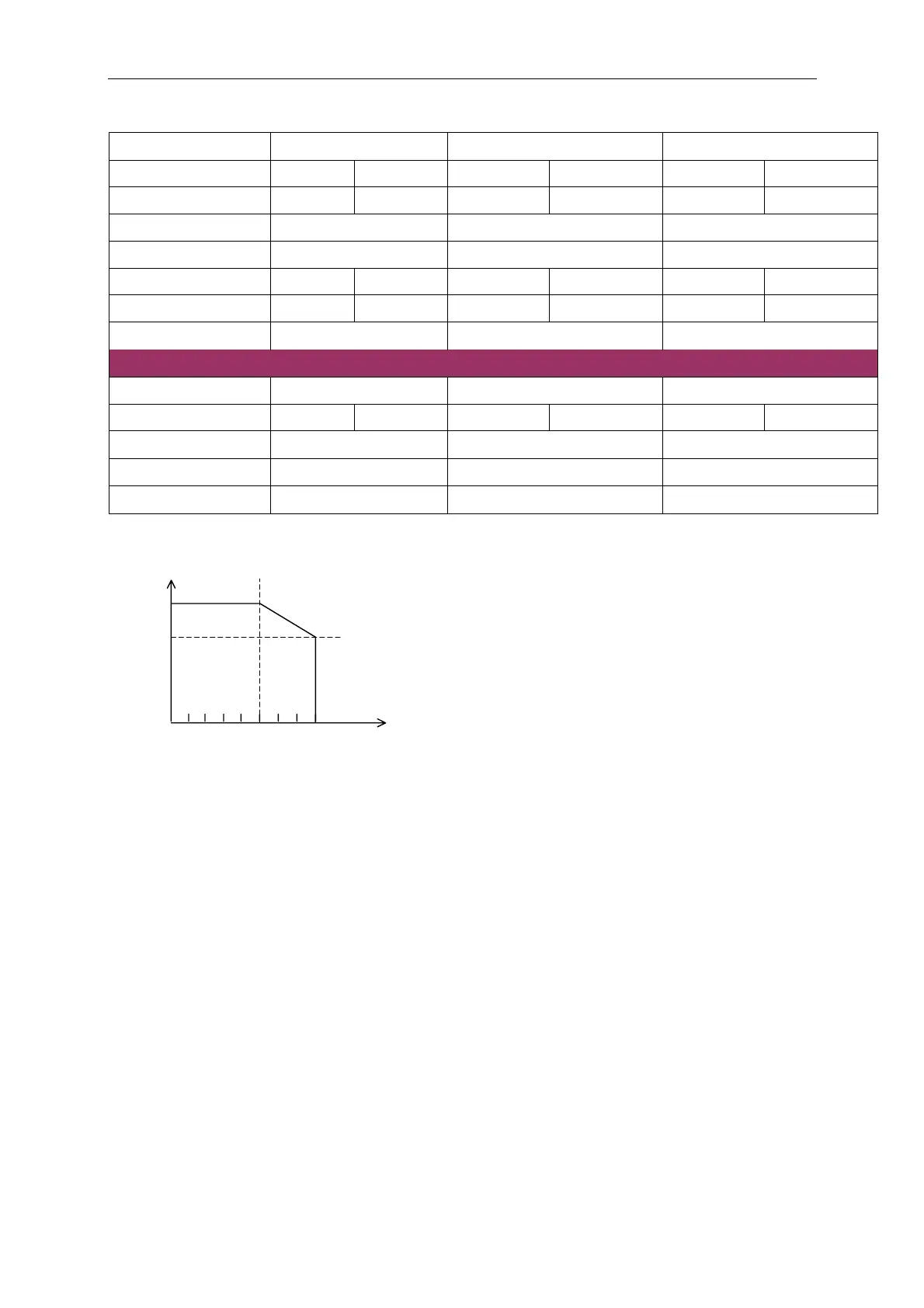

1. The power rating specifications at ambient temperature = 25°C and see the diagram below for power derating.
Power Rating
100%
77%
°C
Ambient Temperature
10°C 20°C 30°C 40°C
2. The Vin must be greater than min. operating voltage of each model.
3. The Vin must be greater than 7V of each model.
All CR mode accuracy should be referring to the CC mode accuracy.
4. Setting error will be 1% for R < 0.005Ω at CRL range.
