Panel Description
3-1
3. Panel Description
3.1 Front Panel
The front panel of 66203/66204 Digital Power Meter is as Figure 3-1 shows and the functions
numbered from 1 to 10 are described below.

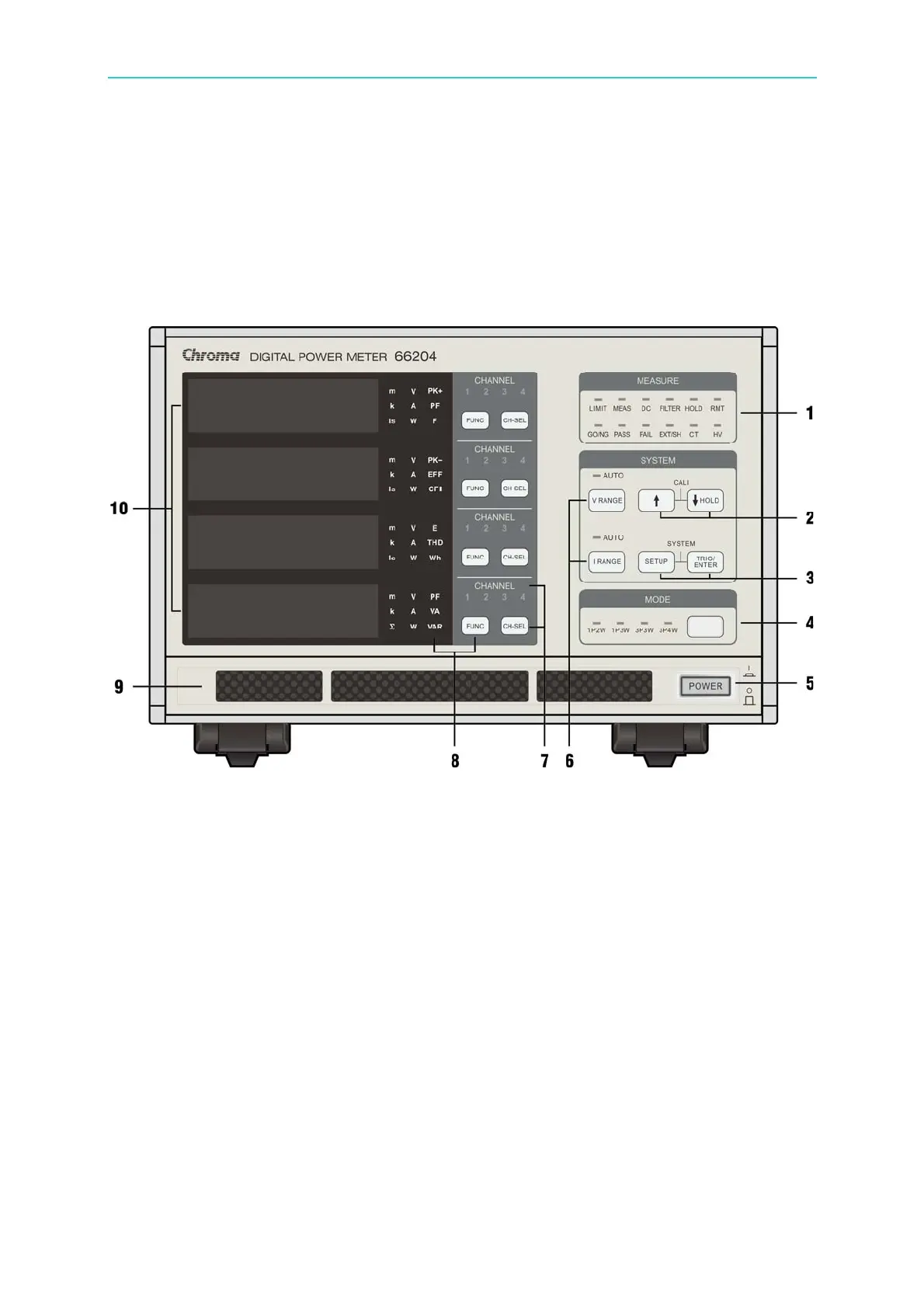

Figure 3-1 Front Panel of 66204 Digital Power Meter
1. Function menu setup &
operation indicator
: Use the SETUP key to select the Limit, Meas and DC
function menus. After the function is set via the menu, the
indicators FILTER, HOLD, RMT, GO/NG, PASS, FAIL,
EXTSH, CT and HV will be on indicating the function is
under operation.
2. ↑↓ cursor, HOLD &
CALI keys
: The Up and Down keys can select the function and
increase or decrease the setting range or value.
Press down the HOLD key, the HOLD indicator will be on
and the function is enabled.
Press the Up and Down keys simultaneously can enter into
the CALI menu to do zero calibration for current
measurement.
