Chromalox C4 User Manual

13

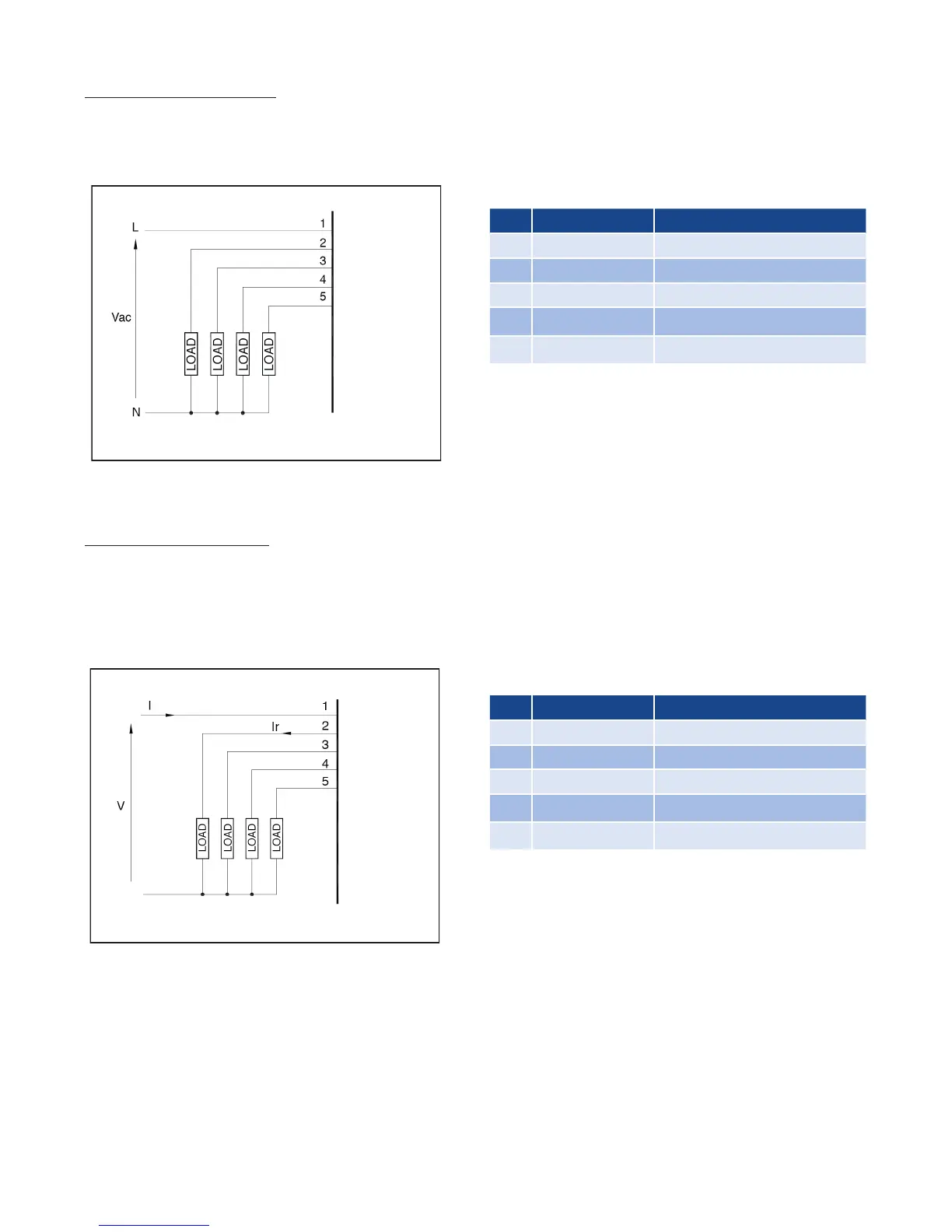

Outputs 5 - 8: TRIAC Type
TRIAC outputs: Voltage: 24...230Vac, max 1A
Wiring Schematic for Outputs 5 - 8, TRIAC Outputs
Outputs 5 - 8: Relay Type
Outputs Out 5 - Out 8, Relay outputs: Ir = 3A max, NO (normally open)
V = 250V/30 Vdc cosw = 1; I = 12A max
Wiring Schematic for Outputs 5 - 8, Relay Outputs
PIN Legend
PIN Name Description
1
Com O5-O8 Outputs Common
2
O5 Output 5
3
O6 Output 6
4
O7 Output 7
5
O8 Output 8
PIN Legend
PIN Name Description
1
Com O5-O8 Outputs Common
2
O5 Output 5
3
O6 Output 6
4
O7 Output 7
5
O8 Output 8
Com O5-O8
O5
O6
O7
O8
Com O5-O8
O5
O6
O7
O8
Com O5-O8
O5
O6
O7
O8
Com O5-O8
O5
O6
O7
O8
