7.8.3 Connection Example: Communication Ports

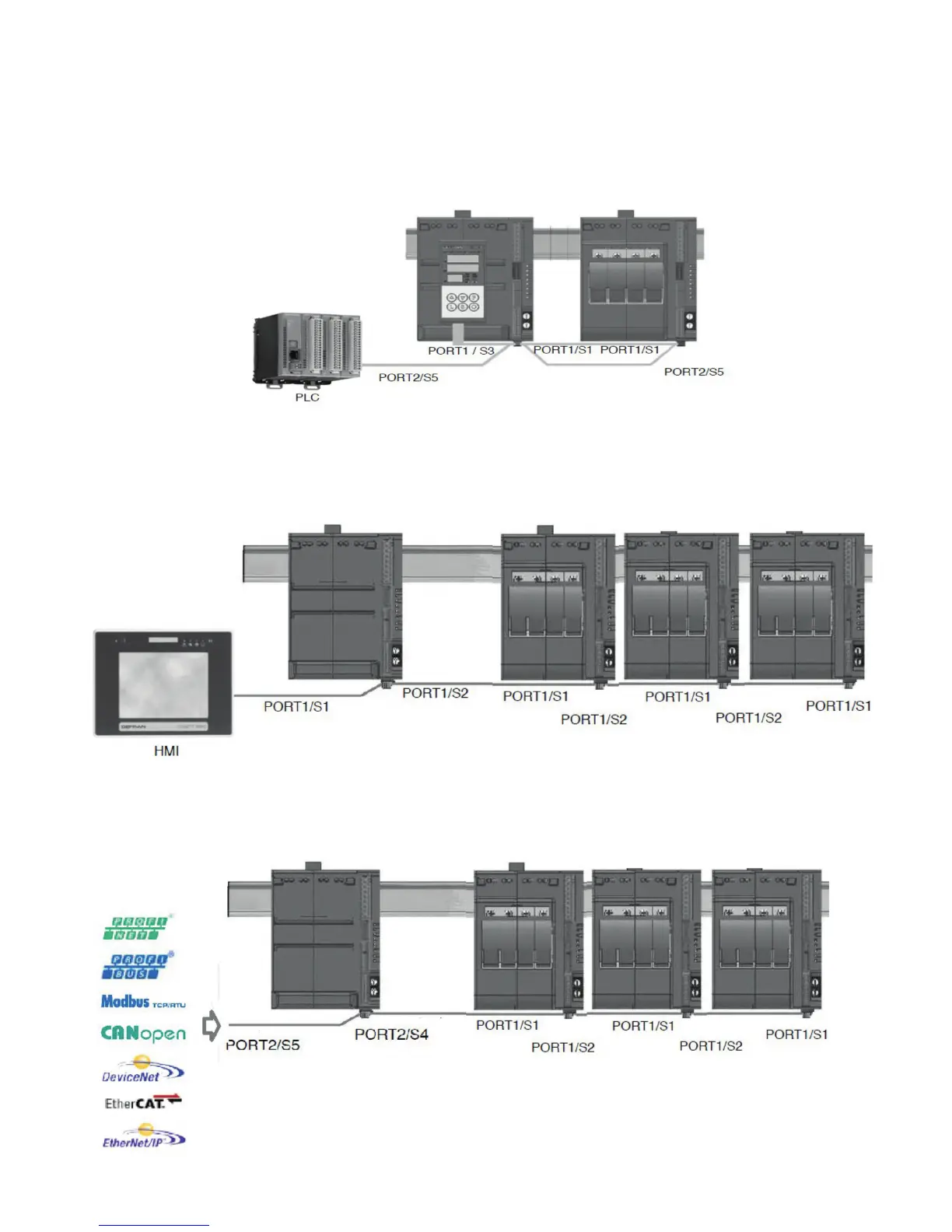

A. Supervisory PC/PLC with multiple C4 Modules, with C4-OP.
May need to use Autobaud to synchronize communications.
B. HMI Connection via Modbus RTU (RS-485) to four C4 Modules
May need to use Autobaud function to synchronize communications.
C. SCADA System with fieldbus interface, Single Master Setup
May need to use AutoNode Sequence to set communications.
