Chromalox IntelliTRACE User Manual

20
Output Mapping
Output Power Sensing
A single Output demand value may be mapped to multiple Circuits. This allows several circuits to be controlled by
a single Output demand value.
Minimum, Maximum, Averaging
Several Output demand values may be mapped to a single output circuit. This allows that circuit to be controlled
by the Minimum or the Maximum or the Average Output demand value of all of the Outputs that are mapped to
that single Circuit.
Multiple Output Mapping
A single output demand value may be used independently or combined with other output demand values to con-
trol more than one circuit.
For Example:
The average output demand value of circuits 1, 3 & 5 is used to control Circuit 1 while simultaneously
the maximum Output demand value of Circuits 3, 4 & 5 is used to control Circuit 2.

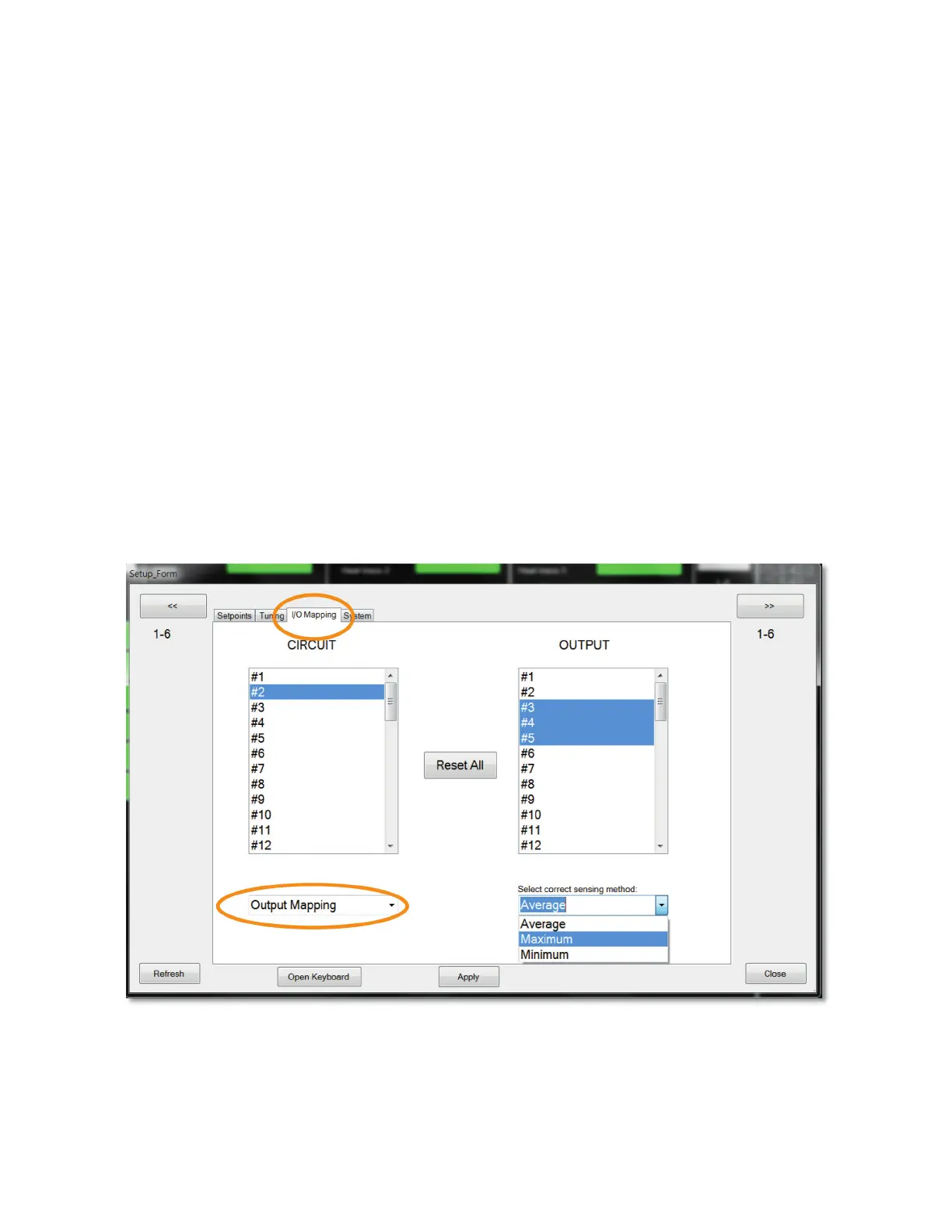

Output Mapping is accomplished within the I/O Mapping Tab found in the Setup Form Page. See Figure 15.
Figure 15
