7
System Navigation
IntelliTRACE supervisory control provides individual circuit health and complete system-wide alarm status at a
single glance. There are three major areas visible to the user:

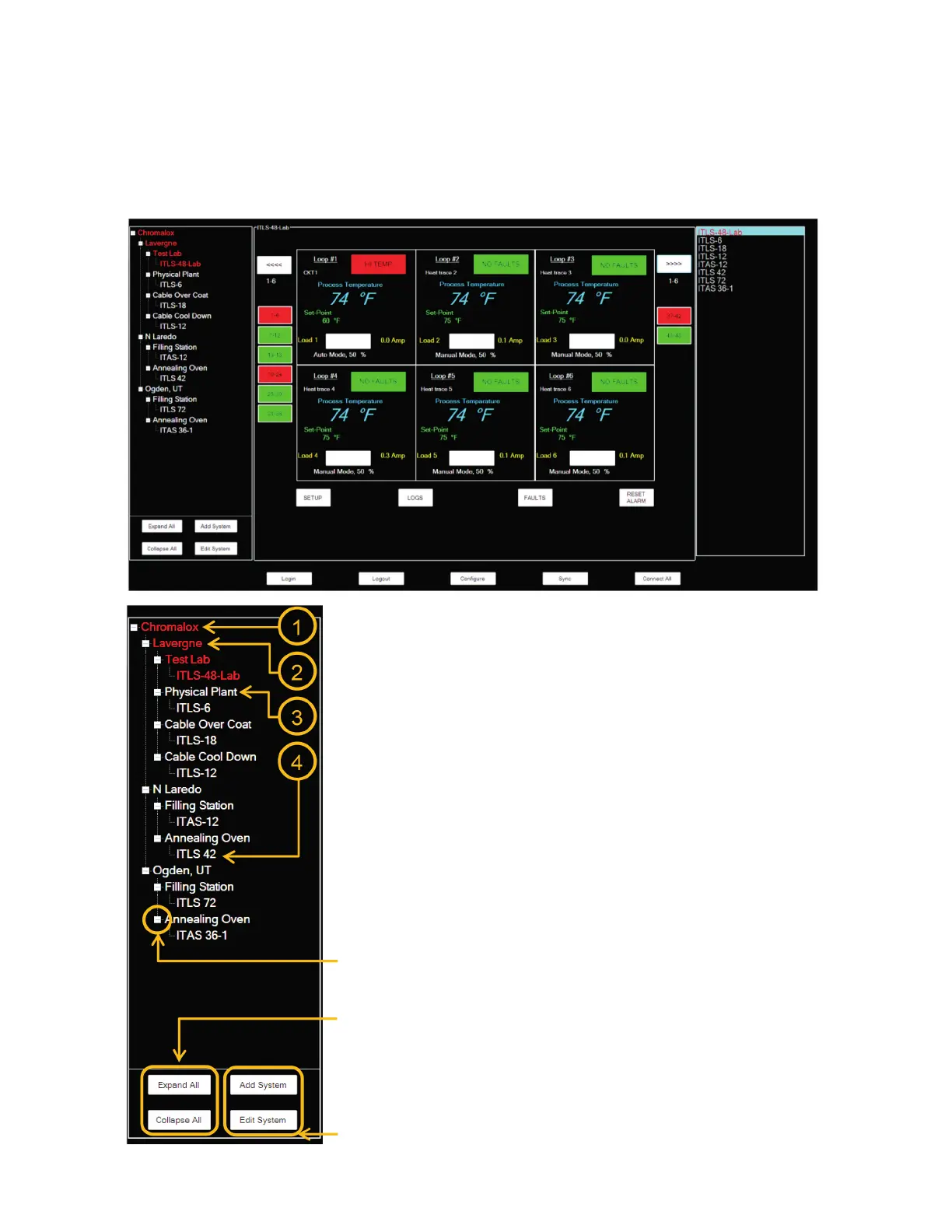

System Tree Pane Main Screen Panel List
System Tree Pane
The System Tree Pane, on the left, is visual illustration of your system net-
work. It also provides alarm status for all areas that are being monitored
and managed by the intelliTRACE supervisory control.
Red Text indicates that there is a circuit within a certain area of your sys-
tem that is in the alarm state.
Four levels of your system are visible here:
1-Company, 2-Facility, 3-Department, 4-Individual Panel
The System Tree detail may be varied depending on the resolution that
you desire to view. Discrete expanding and collapsing control is provided
within each level via the + and - switches.
To fully expand or collapse the tree, use the Expand All and Collapse All
buttons at the bottom-left of this pane.
Initial system setup, edits, and additions to your system may be accom-
plished via the Add System & Edit System buttons at the bottom-right of
this pane.
