24
Event (Alarm) Log
The purpose of Event Log is to capture every alarm type and its condition with a date and time stamp. This log is
itemized in the Log Form, which is revealed when the LOGS button at the bottom of the Main Screen is selected.
See Figure 18.
This log may be saved to a file. To accomplish this, select the Save button on the right side of the Log Form. You
will be prompted with a Save As window. Choose the destination of your choice. See Figure 19.
The Event Log file will be saved as a CSV (comma separated value) type Text (.txt) file. This will be important if it is
to be viewed or manipulated in Microsoft Excel.

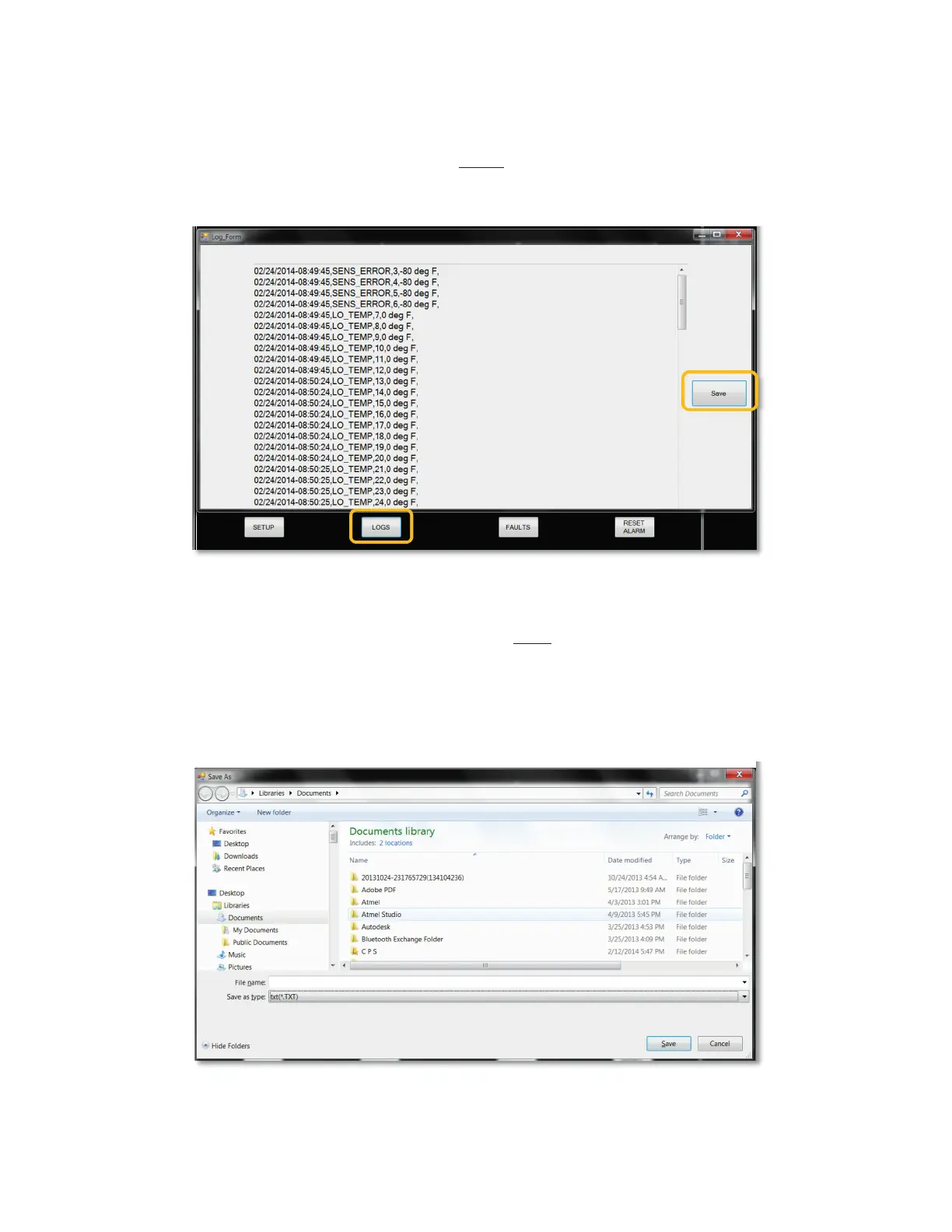

Figure 18
Figure 19
