First diagram’s fuse panel is installed in the luggage compartment, and second fuse panel is installed beside the battery cabin.
WARNING
Electrical circuits are designed with a particular wire gauge to meet the fuse and circuit breaker current rating. Do not
increase the size of fuse or circuit breaker, or change type of breaker supplied with your motor coach. To do so could
cause wiring to overheat and possibly burn, resulting in a fire which could cause property damage, personal injury or
death.
CAUTION
No modification should be made to any motor coach control system without first contacting your HT dealer.

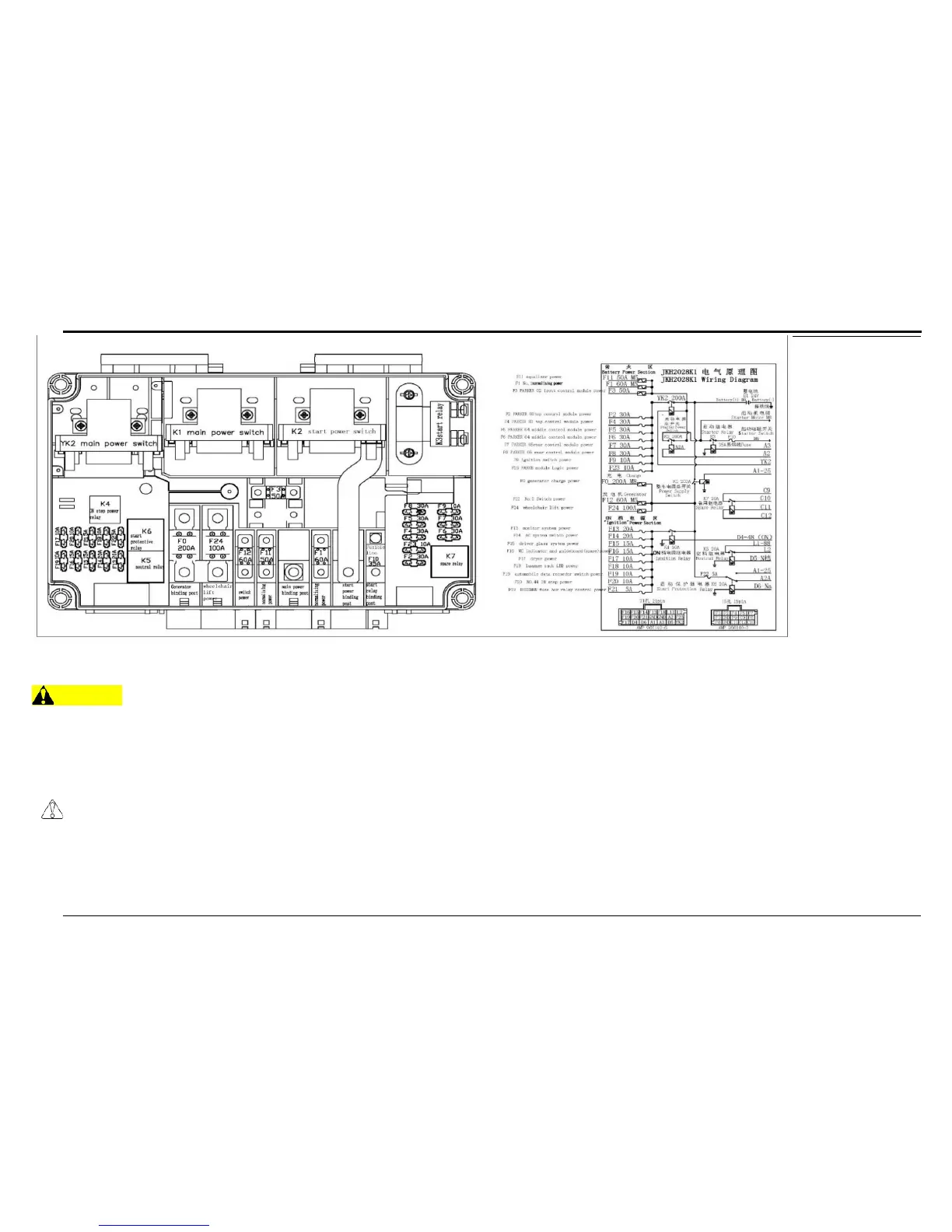

Fuse panel can be found on wall at the rear of the luggage bay. Refer to the schematic located on the fuse panel cover.
