2 INSTALLATION

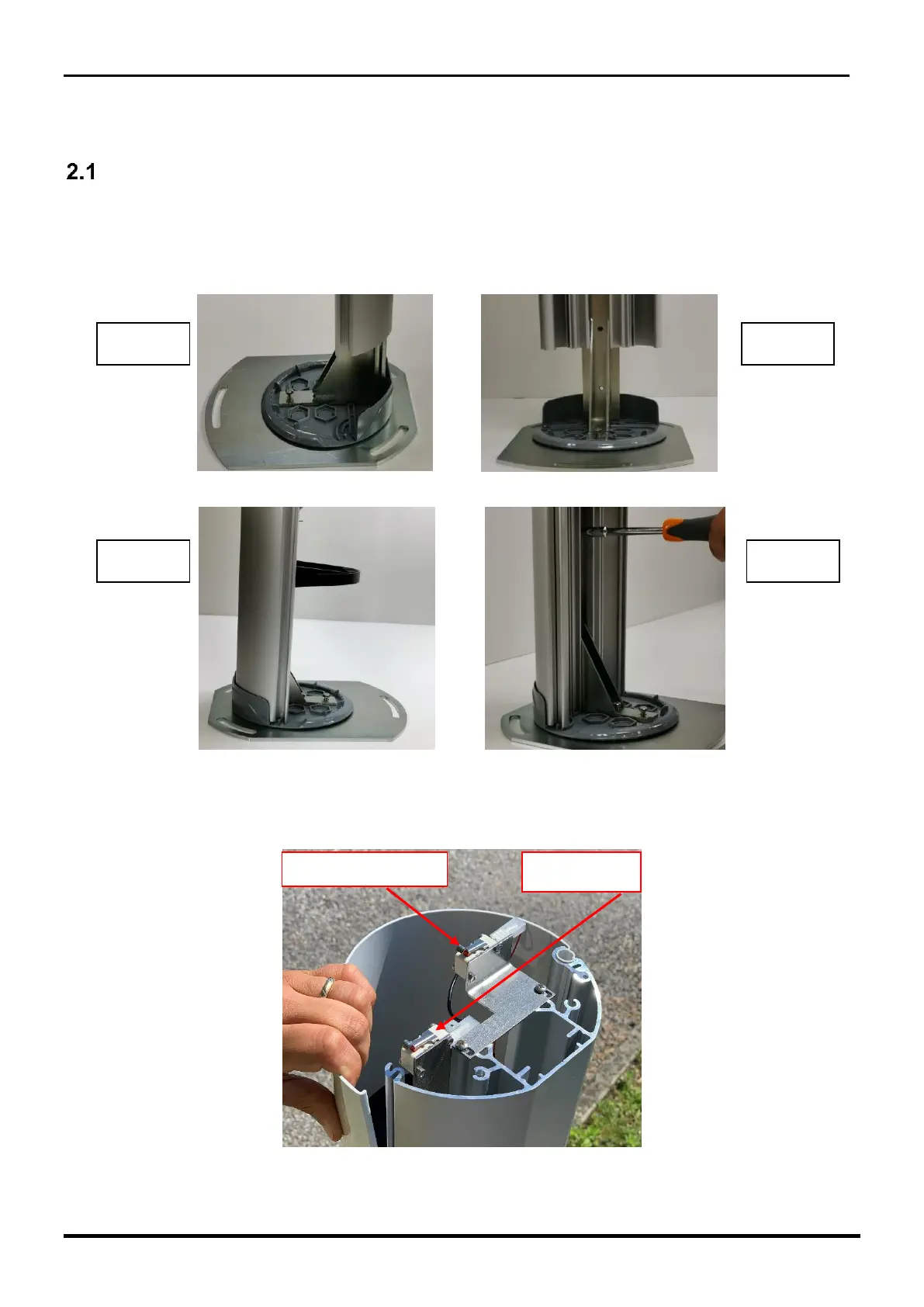

Column assembly on the TOWER BASE
Once the column cover is open, align the lower part with the plug of the TOWER-BASE steel base
that will be fixed to the ground (see Fig. 1 and 2). At this point insert the special plug in the column
only after having positioned the locking L-shaped bracket (Fig. 3). After this you can fix the
supplied screws (Fig. 4).
In the upper part of each column there are two serial switches (tamper). The one on the side
signals the removal of the upper cover. The central one signals the pressure on the lid and is
therefore indicated to reveal override attempts.
Figure 5
