CIAT LP Series - Page 19

HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.122 H
Water chillers and
air-water heat pumps
19
CIATCooler LP

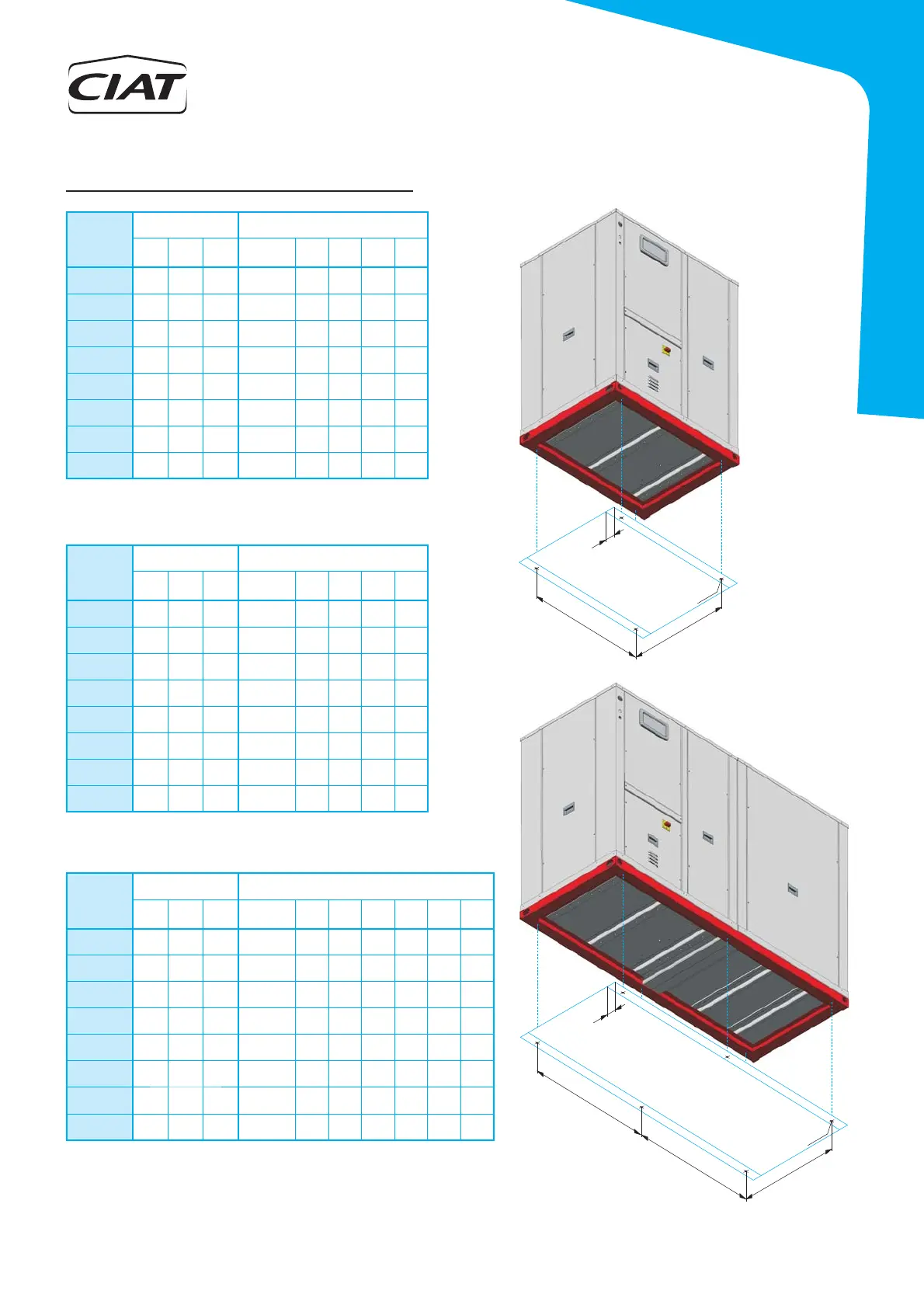

Anchorage for antivibrators: HEE version
Note: all the anchorings are rivet nut types.
LPC / ILPC
+ module
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4 R5 R6
90V-HEE
948 760 65 569 41 135 105 43 137 107
100V-HEE
1085 760 65 646 42 155 127 41 154 126
120V-HEE
1085 760 65 723 57 171 128 60 175 132
160V-HEE
1446 760 65 804 76 188 124 85 197 133
180V-HEE
1446 760 65 813 77 190 126 86 199 135
200V-HEE
1726 760 65 1094 104 254 165 120 270 181
240V-HEE
1726 760 65 1120 110 261 167 124 275 182
280V-HEE
1726 760 65 1128 110 264 170 124 277 184
LPC / ILPC
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4
90V-HEE
896 760 65 327 77 84 87 79
100V-HEE
1166 760 65 390 88 109 107 86
120V-HEE
1166 760 65 408 100 101 104 103
160V-HEE
1892 760 65 497 109 130 140 118
180V-HEE
1892 760 65 503 110 132 142 119
200V-HEE
2452 760 65 690 147 180 198 165
240V-HEE
2452 760 65 717 160 183 198 175
280V-HEE
2452 760 65 724 162 187 200 175
LP / ILP
Distances (mm) Reactions in the supports (kg)
ABC
Weight in
service
R1 R2 R3 R4
90V-HEE
896 760 65 298 64 100 85 50
100V-HEE
1166 760 65 358 63 127 116 52
120V-HEE
1166 760 65 376 88 112 100 77
160V-HEE
1892 760 65 465 69 177 163 56
180V-HEE
1892 760 65 468 71 178 163 56
200V-HEE
2452 760 65 648 106 213 218 111
240V-HEE
2452 760 65 674 143 191 194 146
280V-HEE
2452 760 65 680 145 193 195 146
B
A
C
M10
R1
R2
R3
R4
LP / ILP / LPC / ILPC
B
A
A
C
M10
LPC / ILPC with
hydraulic module
